Exact Minutes

Information

Technical Specifications

  • Energy savings of up to 85%;
  • Adjustable timer from approximately 15 seconds to approximately 4 minutes.
  • Automatic time recount from the last call;
  • Indicator light for switch activated (LED);
  • Blown fuse indicator light (neon lamp);
  • EZNEON – exclusive circuit that allows the use of up to 10 luminous pushbuttons at 127V (neon or LED);
  • BFS – with 3 consecutive taps (after the load is switched off) the 45-minute timer is activated, ideal for moving, cleaning and parties;
  • APS – Self-protection system against installation defects caused by a stuck switch (LED lit). The timer switches off the lights, which then turn back on after the problem is resolved.
  • It controls any type of light bulb;
  • ECOLAMP – an exclusive system that extends the lifespan of lamps and timers;
  • Protection via fuse;
  • Voltage: 100 – 240 V ~ 50/60Hz – automatic dual voltage;
  • Warranty: 2 years.

Exact Minutes

Sale closed.

Code: MIX MP

Description

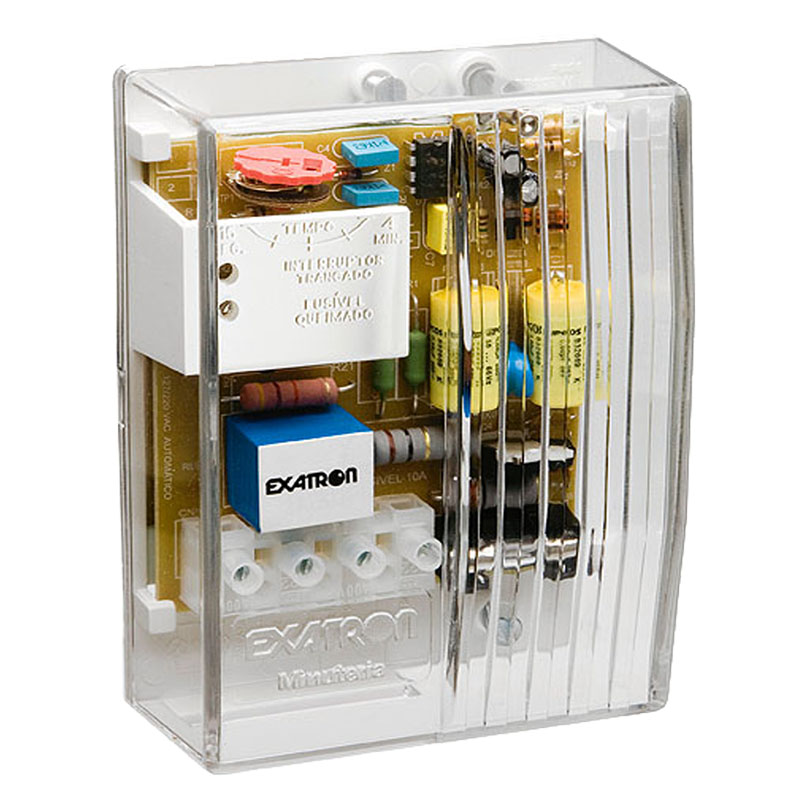

The Exatron Exact Timer (MIXØMP) is a timer relay that controls lighting for a specified duration. It controls multiple light points and any type of lamp. Determine the time the light will remain on in circulation areas, halls, corridors, garages, stairwells, and other common areas of condominiums.

Download

User manual

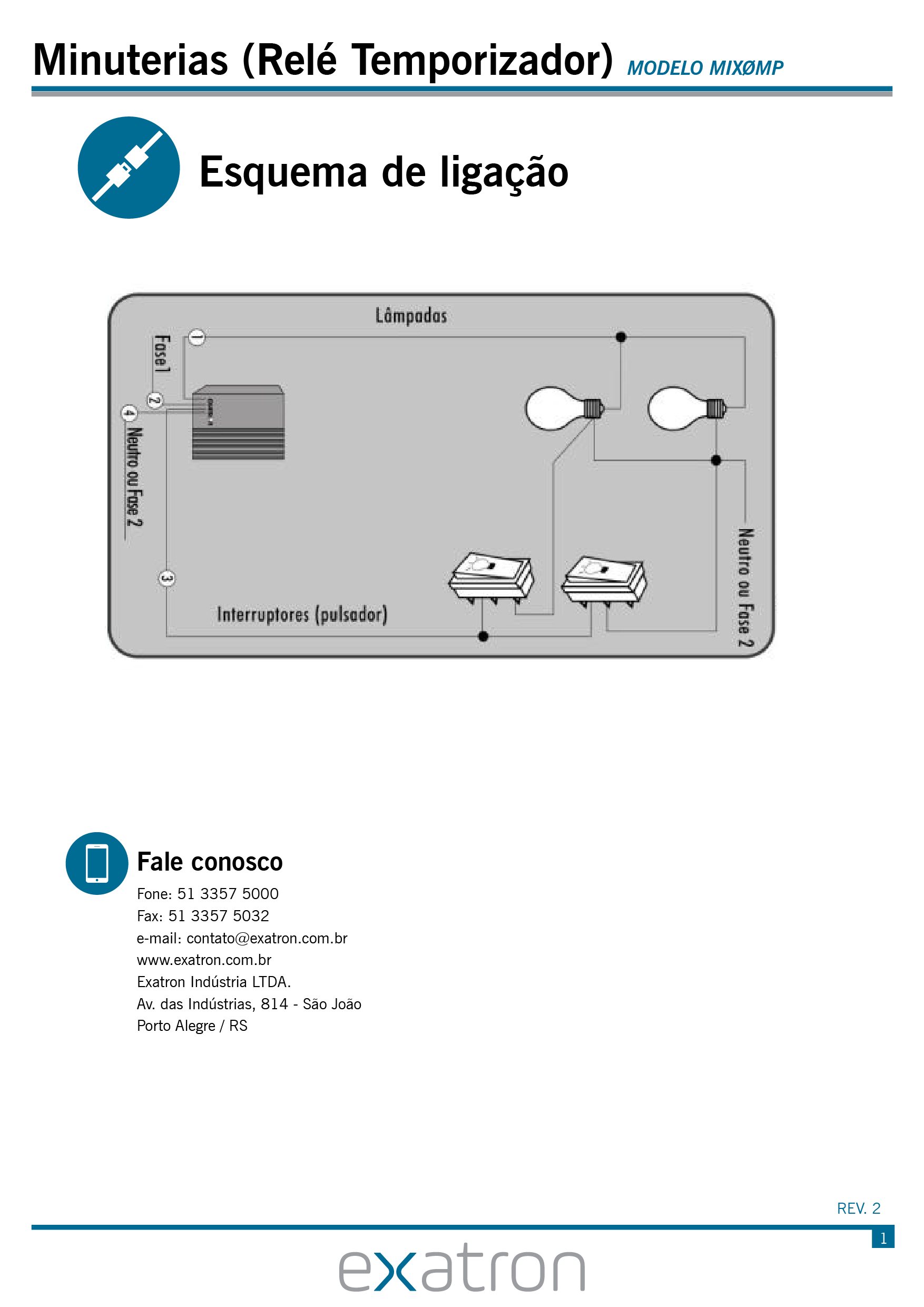

Wiring Diagram

Information

Technical Specifications

  • Energy savings of up to 85%;
  • Adjustable timer from approximately 15 seconds to approximately 4 minutes.
  • Automatic time recount from the last call;
  • Indicator light for switch activated (LED);
  • Blown fuse indicator light (neon lamp);
  • EZNEON – exclusive circuit that allows the use of up to 10 luminous pushbuttons at 127V (neon or LED);
  • BFS – with 3 consecutive taps (after the load is switched off) the 45-minute timer is activated, ideal for moving, cleaning and parties;
  • APS – Self-protection system against installation defects caused by a stuck switch (LED lit). The timer switches off the lights, which then turn back on after the problem is resolved.
  • It controls any type of light bulb;
  • ECOLAMP – an exclusive system that extends the lifespan of lamps and timers;
  • Protection via fuse;
  • Voltage: 100 – 240 V ~ 50/60Hz – automatic dual voltage;
  • Warranty: 2 years.
Default Kit
