Technical Specifications

• Voltage: 100 – 240 V~ 50/60 Hz;

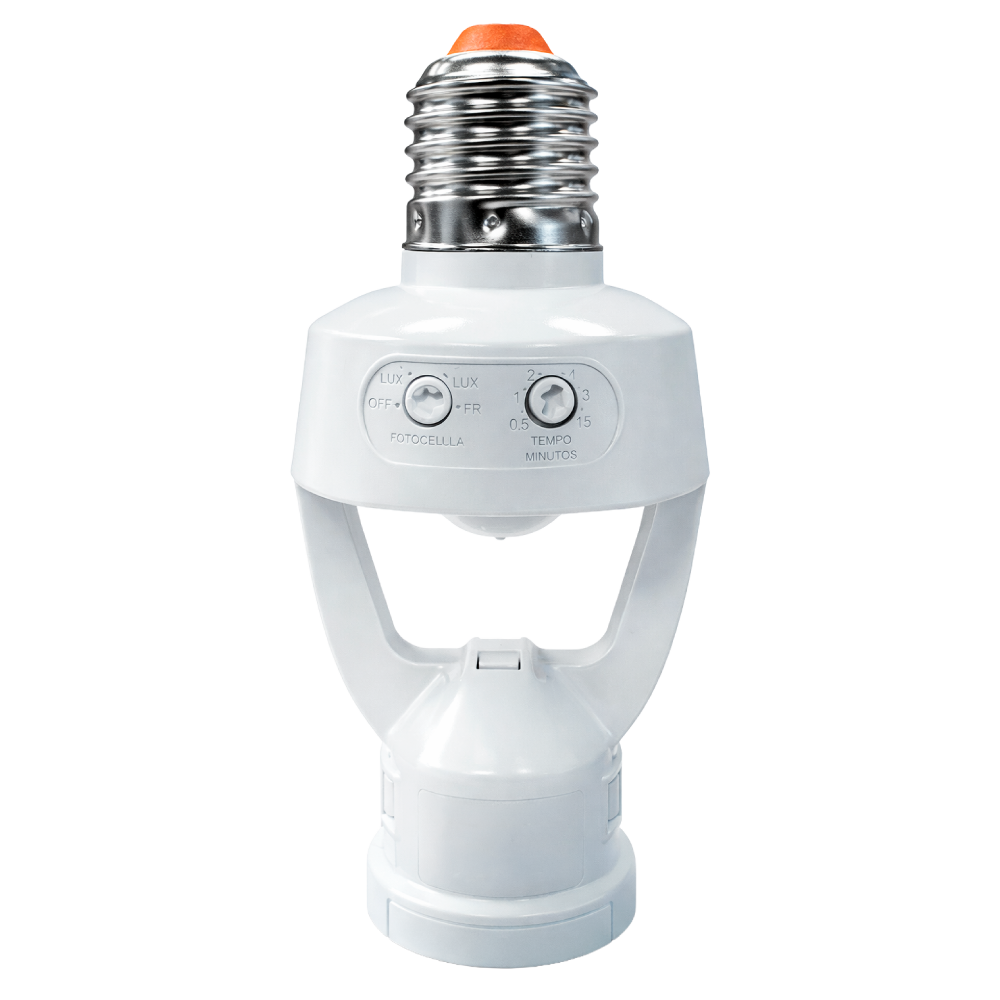

• Time adjustment: 30 seconds, 1, 2, 4, 8 or 15 minutes (via Trimpot);

• Photocell Programming: OFF, minimum, maximum and FR-Relay Function (via Trimpot);

• Power consumption: 0.4W;

• Energy savings of up to 75%;

• Coverage angle: 2 x 164º (328º);

• Sensor range: up to Ø 7.0m (height of 2.4m) @ 25ºC;

• Suitable for indoor and outdoor use, protected from the elements (rain and sunlight);

• LED indicator for motion detection;

• Relay function: the sensor activates the lamp at dusk, keeping it on for 4 hours (indicator LED always on). After this period, it returns to functioning as a sensor, with the photocell equivalent to the minimum position;

• Operating temperature: -5°C to 40°C;

• Detects the movement of heat sources (people, cars, etc.) that must be at least 3°C different from the ambient temperature where the sensor is installed;

• Warranty: 2 years;

• Lamp Friendly: load activation system with low electrical voltage, increasing the lifespan of the assembly (lamp, ballast and sensor);

• The maximum drive power should not be added together in parallel installations.

• Control power:

Installation

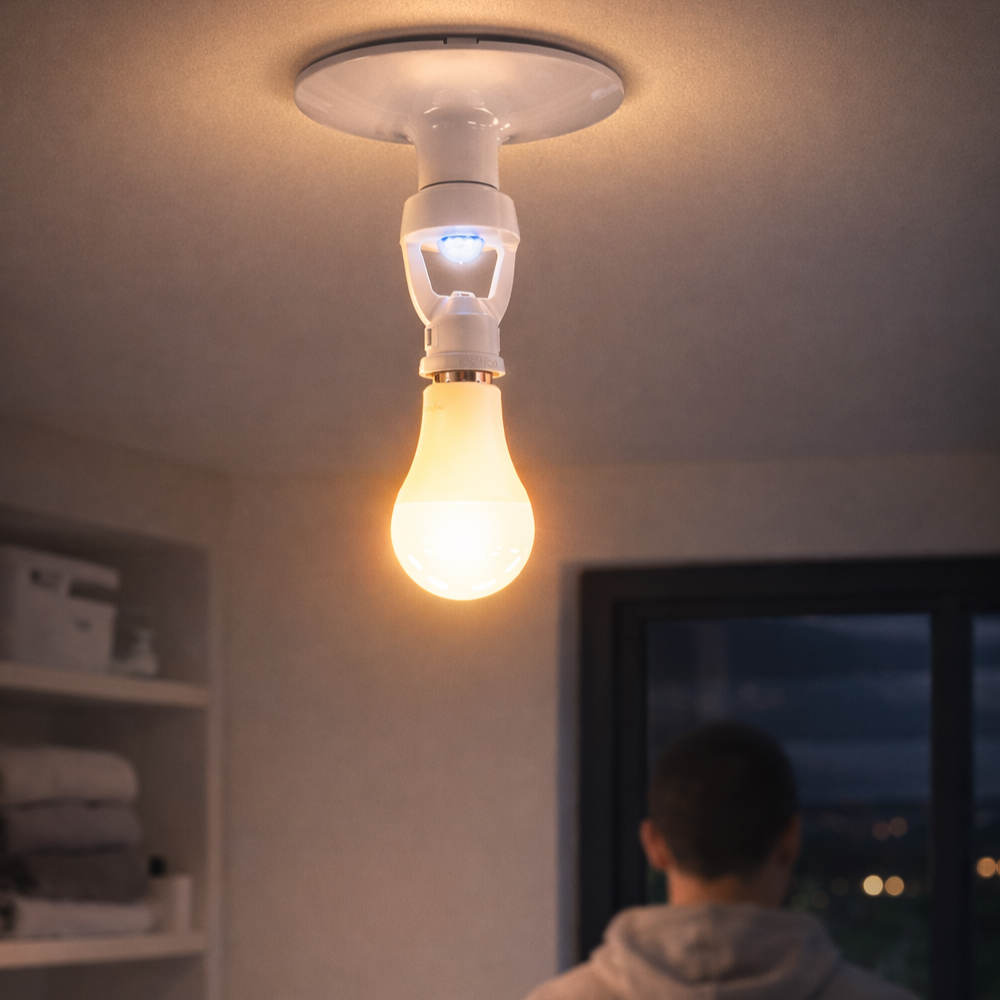

Screw the bulb into an E27 socket base at a maximum height of 2.4 meters from the floor. After that, plug in the bulb to be controlled and configure the sensor as desired.
