Smart Front Presence Sensor
Smart Front Presence Sensor
Smart Front Presence Sensor
Smart Front Presence Sensor

Information

Technical Specifications

• Power supply: 3V – CR123A battery;

• Standby power consumption: 20uA;

• Technology: BLE SIG Mesh 2.4GHz;

• Encryption: AES;

• Detection distance at a height of 2.1m: Up to 8 meters (see detection map);

• Detection angle: 90°C;

• Maximum distance from the Wi-Fi/BLE SIG Mesh Gateway: Up to 10m from the BLE SIG Mesh Gateway or device with BLE SIG Mesh, without obstacles;

• Installation: Direct installation onto surfaces using screws and wall plugs;

• Dimensions: 50x48x48mm;

• Operating temperature: 0°C to 40°C;

• Material: ABS resin;

• Color: White.



Installation

• Configure the Smart Front Presence Sensor using the myhouse X app, available for download on Google Play and the App Store. Minimum operating system version: iOS 11.0 / Android™ 7.0;

• Before starting the installation, check if the location allows Bluetooth communication with the Gateway or another device that repeats the BLE SIG Mesh signal, which can be done using your smartphone. Remember that this product uses BLE SIG Mesh technology, therefore to test its operation you need a Gateway device that must be installed where there is a 2.4GHz Wi-Fi signal;

• The product comes from the factory with a battery installed, protected by a plastic film. On first use, pull the tab on the battery's protective film to release the product's power supply;

• If replacing the battery, open the sensor module cover to insert the standard CR123A battery.

Smart Front Presence Sensor

available

Code: LSSF6100

Description

Revolutionize and connect spaces with the myhouse X line from Exatron! More security, quality, and innovation in home automation.

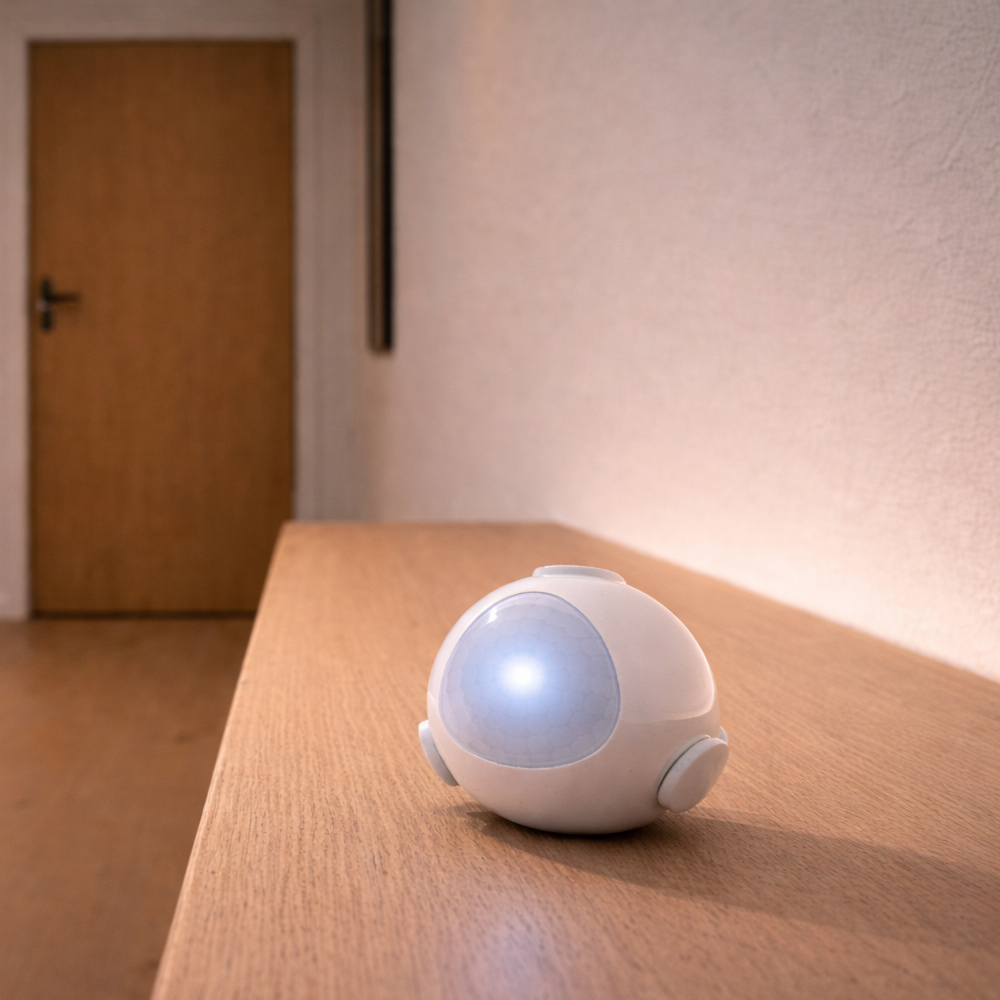

The Smart Front Presence Sensor (LSSF6100) monitors and detects the movement of heat sources such as people, animals, and cars. Being a battery-powered product, it can be installed in locations without mains power outlets. Upon detecting movement, it sends a command to your automation network, allowing you to use this command to trigger automation scenarios, turn on/off products connected to your network, and send notification messages to your app.

It is ideal for automating homes, commercial and industrial buildings, playing a key role in creating more efficient, convenient and safe environments.



LSSF6100 | 07929-24-13636

"This equipment is not entitled to protection against harmful interference and may not cause interference to duly authorized systems."

"This product is approved by ANATEL, in accordance with the procedures regulated by Resolution No. 715, of October 23, 2019, and meets the applicable technical requirements."

"For more information, please visit the Anatel website: www.gov.br/anatel/pt-br/"

Download

Packaging

User manual

R$ 169,48

Shipped within 7 business days.
Price* for end consumer

Information

Technical Specifications

• Power supply: 3V – CR123A battery;

• Standby power consumption: 20uA;

• Technology: BLE SIG Mesh 2.4GHz;

• Encryption: AES;

• Detection distance at a height of 2.1m: Up to 8 meters (see detection map);

• Detection angle: 90°C;

• Maximum distance from the Wi-Fi/BLE SIG Mesh Gateway: Up to 10m from the BLE SIG Mesh Gateway or device with BLE SIG Mesh, without obstacles;

• Installation: Direct installation onto surfaces using screws and wall plugs;

• Dimensions: 50x48x48mm;

• Operating temperature: 0°C to 40°C;

• Material: ABS resin;

• Color: White.



Installation

• Configure the Smart Front Presence Sensor using the myhouse X app, available for download on Google Play and the App Store. Minimum operating system version: iOS 11.0 / Android™ 7.0;

• Before starting the installation, check if the location allows Bluetooth communication with the Gateway or another device that repeats the BLE SIG Mesh signal, which can be done using your smartphone. Remember that this product uses BLE SIG Mesh technology, therefore to test its operation you need a Gateway device that must be installed where there is a 2.4GHz Wi-Fi signal;

• The product comes from the factory with a battery installed, protected by a plastic film. On first use, pull the tab on the battery's protective film to release the product's power supply;

• If replacing the battery, open the sensor module cover to insert the standard CR123A battery.
