Technical Specifications

• Voltage: 100-240V~ 50/60Hz;

• Power consumption: <1W;

• Surge protection: 2KV;

• Coverage: 360° with a reach of up to Ø7m at an ambient temperature of 25ºC, at a height of approximately 2.4m;

• Operating temperature: -5°C to 40°C;

• For indoor use;

• Features an LED indicator: the LED flashes for 0.5 seconds after each detection;

• Detects the movement of heat sources such as people, cars, etc. The temperature difference between the sensor and the ambient temperature (at least 3°C) is required.

• Lamp Friendly: load activation system with low electrical voltage <50V, increasing the lifespan of the assembly (lamps, ballast and sensor);

• Energy savings of up to 75%;

• Components: plastics, electronics, and metal alloys;

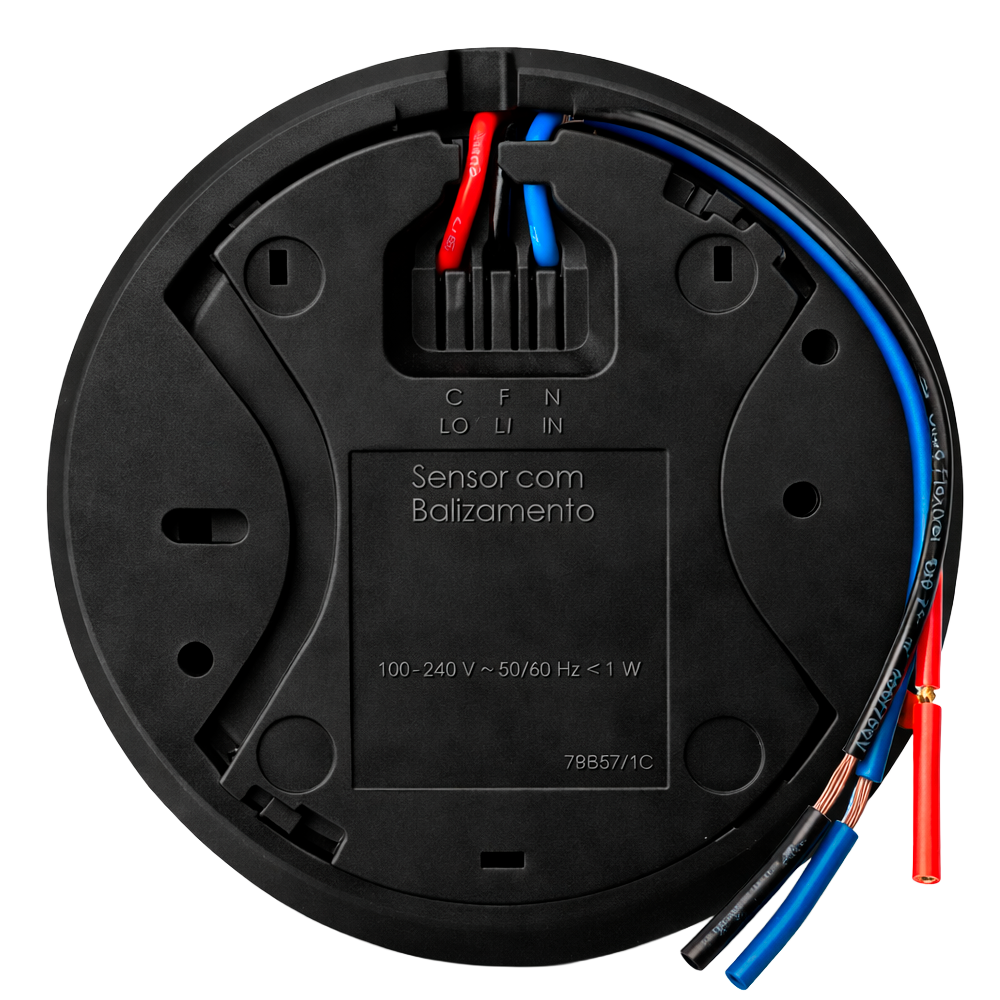

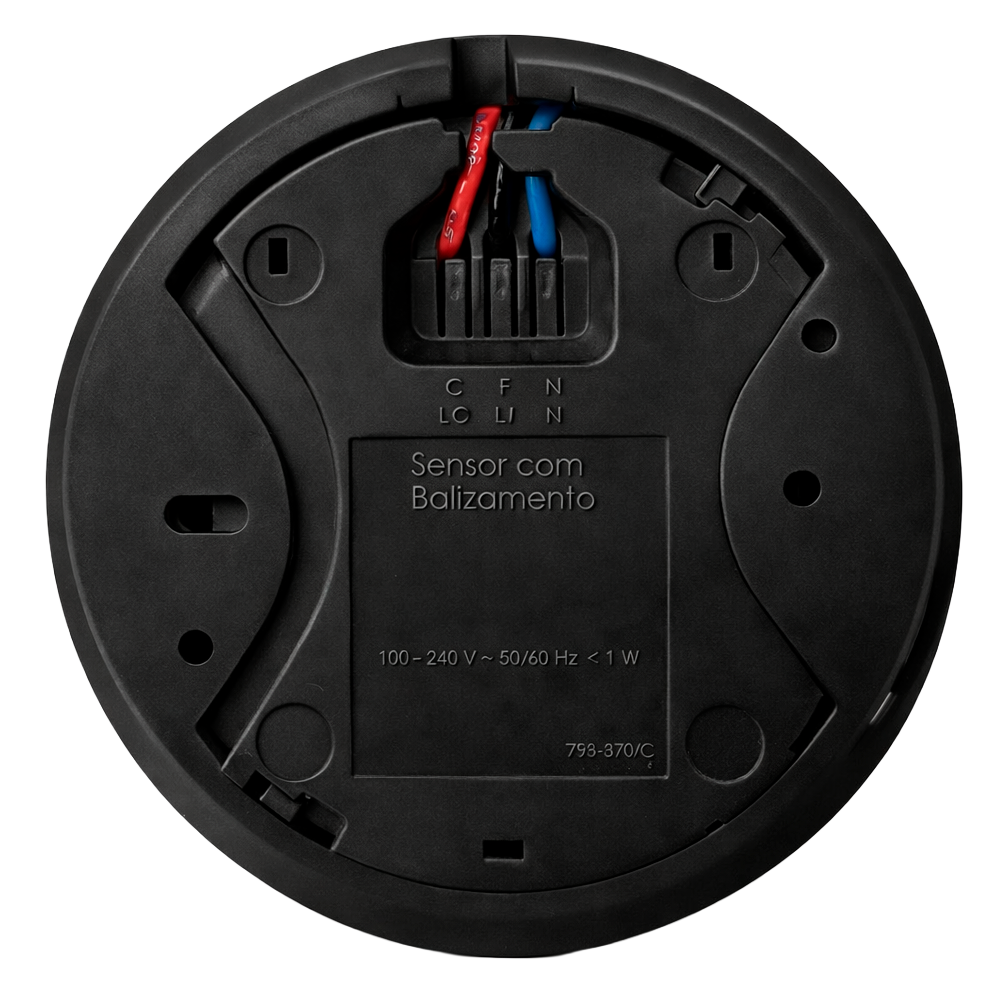

• Color options: white or black;

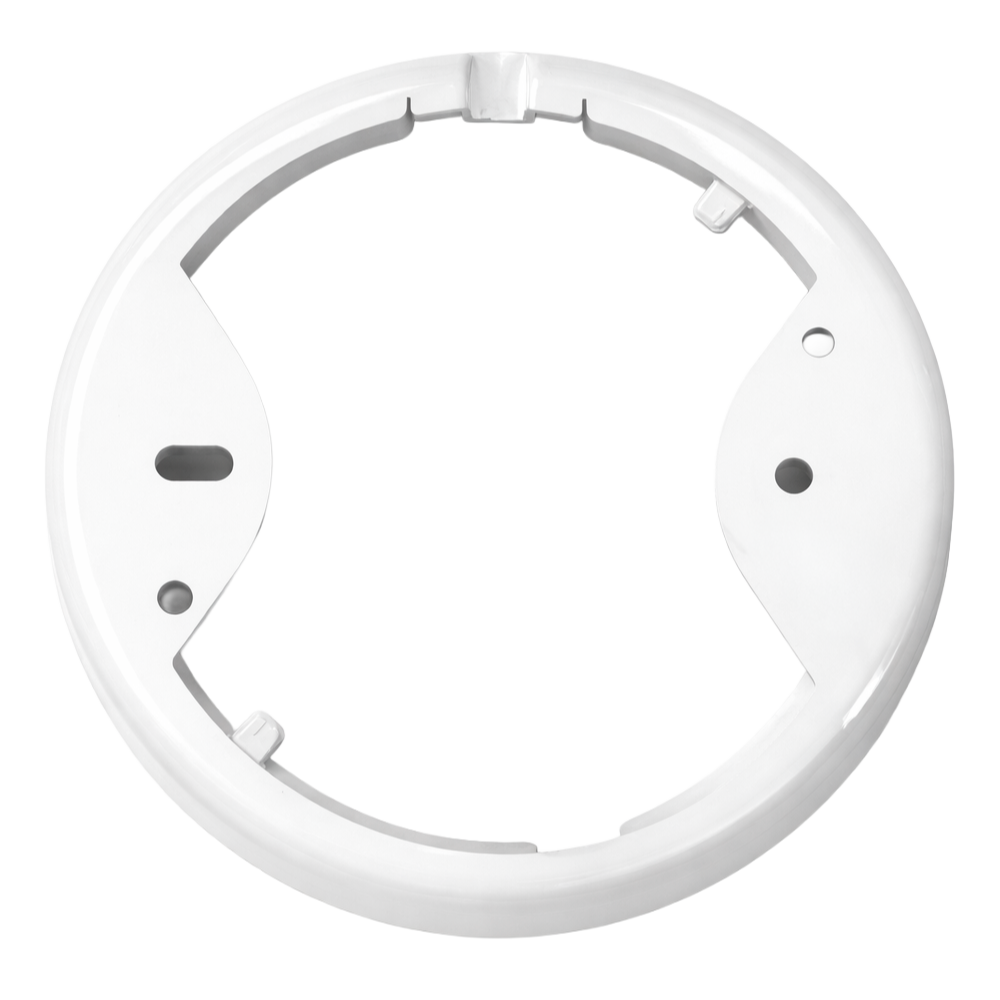

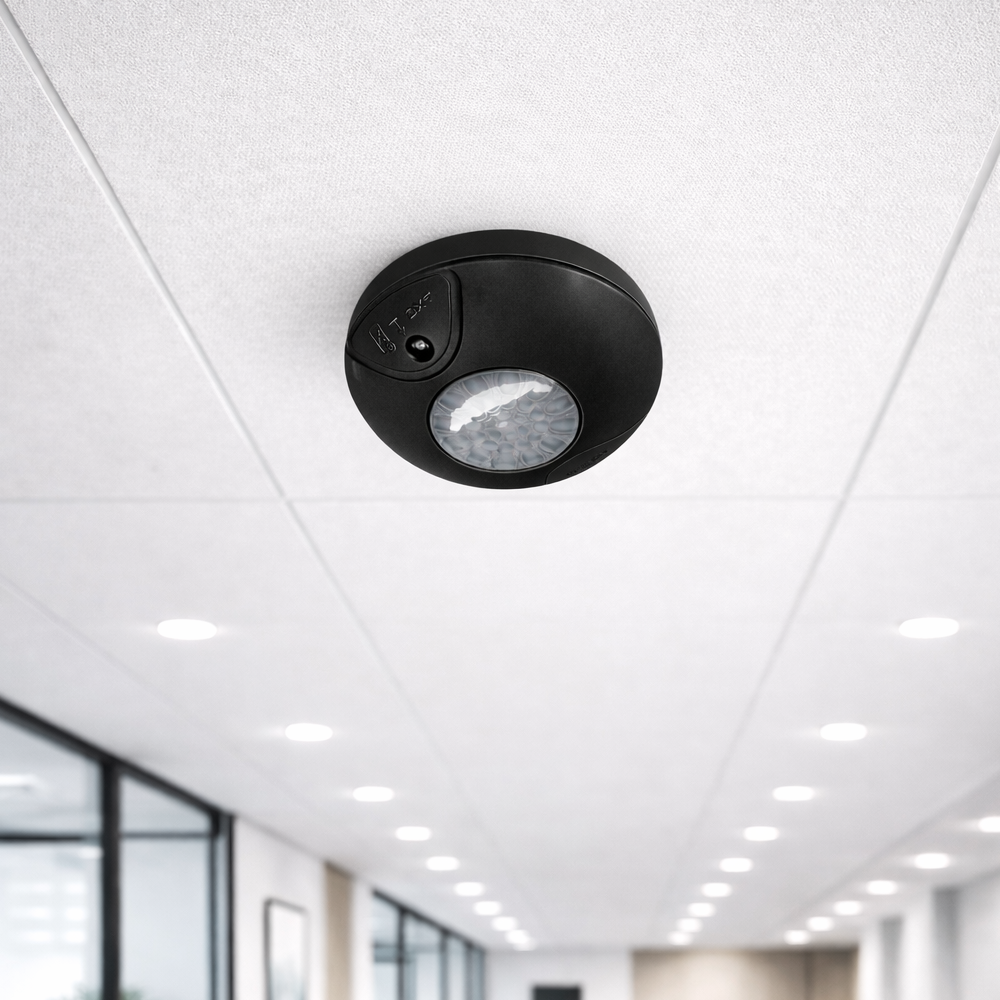

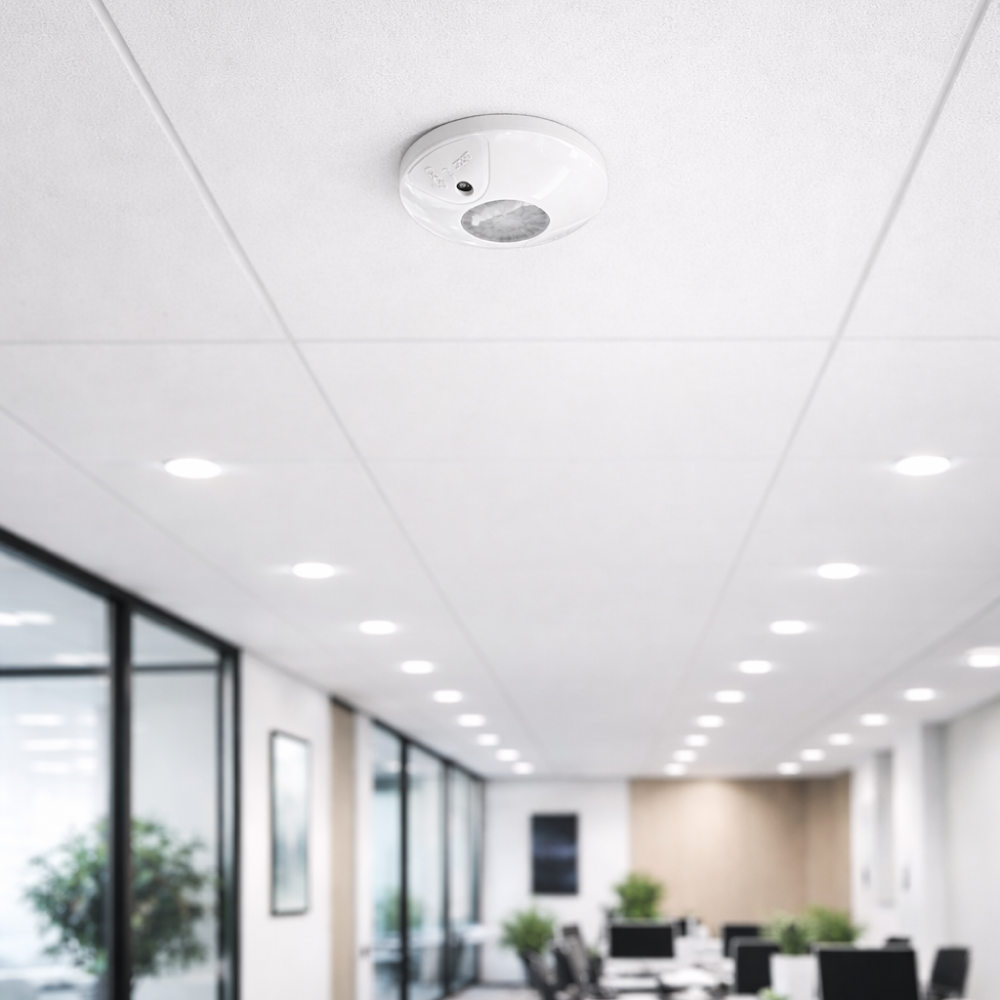

• Installation: recessed or surface mounted;

• Dimensions: Ø89x30mm;

• Protection rating: IP32;

• Warranty: 2 years.

• ADJUSTMENTS MADE BY THE SMART X-CONTROL APP:

– Sensitivity adjustment: 8 levels;

– Time adjustment:

In seconds: 1 (pulse), 2, 3, 4, 5, 10, 15, 30 and 45s;

In minutes: 1, 2, 3, 4, 5, 10, 15, 20, 25, 30, 40 and 50 min;

In hours: 1, 1:30, 2, 2:30, 3, 3:30 and 4 hours.

– Photocell: Disabled (always on). Enabled (30 adjustment levels) with special auto-Lux function;

– Beacon light with adjustable intensity (0 to 100%) and photocell:

Light On: Sets the intensity of the beacon light, between 0 and 100%, when the lamp is on;

Light Off: Sets the intensity of the beacon light, between 0 and 100%, when the lamp is off;

Photocell: When switched on, it causes the beacon light to turn on only when the environment is dark (night). When switched off, it causes the beacon light to operate independently of the ambient lighting (day and night).

– Timer function and relay function: 1 to 12 hours, with a resolution of 0.5 hours;

– LED Control:

When disabled: the product's LED will not blink when it detects movement;

When enabled: the product's LED will flash when it detects movement.
