Smart Opening Sensor

Information

Technical Specifications

• Power supply: 3V – CR2032 battery;

• Standby power consumption: <20uA;

• Technology: BLE SIG Mesh 2.4GHz;

• Encryption: AES;

• Maximum distance from the Wi-Fi/BLE SIG Mesh Gateway: Up to 10m from the BLE SIG Mesh Gateway or device with BLE SIG Mesh, without obstacles;

• Direct installation onto surfaces using double-sided tape;

• Main Module Dimensions: 43x27x13mm;

• Magnetic Module Dimensions: 29x12x10mm;

• Operating temperature: 0°C to 40°C;

• Material: ABS resins;

• Color: White;

• Warranty: 1 year.

Note: The device operates on a Bluetooth BLE SIG Mesh network at a frequency of 2.4 GHz; therefore, the smartphone must have a Bluetooth connection, and the Wi-Fi/BLE SIG Mesh Gateway must also be connected to a Wi-Fi network to enable remote interaction. The performance of the application and the product depends on the network infrastructure and the mobile device used.



Installation

• Configure the Smart Door Opening Sensor using the myhouse X app, available for download on Google Play and the App Store. Minimum operating system version: iOS 11.0 / Android™ 7.0;

• The product must be installed indoors, in a place free from humidity and vibrations, and away from heat sources;

• Ensure that the installation location has a standard 2.4 GHz Wi-Fi signal with an internet connection and that the network supports the number of devices connected to it;

• The product comes from the factory with a battery installed, protected by a plastic film. On first use, pull the tab on the battery's protective film to release the product's power supply.

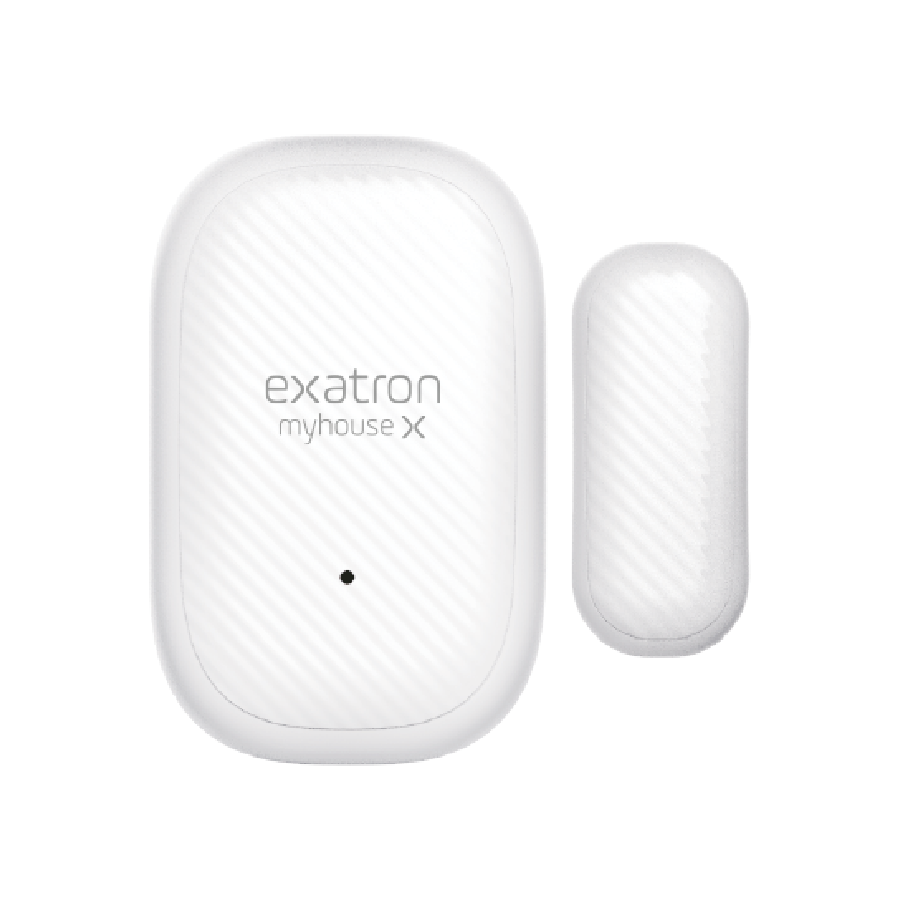

Smart Opening Sensor

available

Code: LSIF6108

Description

Revolutionize and connect spaces with the myhouse X line from Exatron! More security, quality, and innovation in home automation.

The Smart Opening Sensor (LSIF6108) is an intelligent sensor for controlling the opening and closing of doors, windows, drawers, and other devices that can be monitored by opening and closing movements. It is possible to create alerts and alarms that can trigger the activation of other products in the line.

It features BLE SIG Mesh technology to avoid overloading your Wi-Fi router, and together with the Smart Wi-Fi/BLE SIG Mesh Gateway Interface, it allows you to have up to 128 devices occupying only one channel of your Wi-Fi network.



LSIF6108 | 08122-24-17098

"This equipment is not entitled to protection against harmful interference and may not cause interference to duly authorized systems."

"This product is approved by ANATEL, in accordance with the procedures regulated by Resolution No. 715, of October 23, 2019, and meets the applicable technical requirements."

"For more information, please visit the Anatel website: www.gov.br/anatel/pt-br/"

Download

Packaging

User manual

R$ 128,62

Shipped within 7 business days.
Price* for end consumer

Information

Technical Specifications

• Power supply: 3V – CR2032 battery;

• Standby power consumption: <20uA;

• Technology: BLE SIG Mesh 2.4GHz;

• Encryption: AES;

• Maximum distance from the Wi-Fi/BLE SIG Mesh Gateway: Up to 10m from the BLE SIG Mesh Gateway or device with BLE SIG Mesh, without obstacles;

• Direct installation onto surfaces using double-sided tape;

• Main Module Dimensions: 43x27x13mm;

• Magnetic Module Dimensions: 29x12x10mm;

• Operating temperature: 0°C to 40°C;

• Material: ABS resins;

• Color: White;

• Warranty: 1 year.

Note: The device operates on a Bluetooth BLE SIG Mesh network at a frequency of 2.4 GHz; therefore, the smartphone must have a Bluetooth connection, and the Wi-Fi/BLE SIG Mesh Gateway must also be connected to a Wi-Fi network to enable remote interaction. The performance of the application and the product depends on the network infrastructure and the mobile device used.



Installation

• Configure the Smart Door Opening Sensor using the myhouse X app, available for download on Google Play and the App Store. Minimum operating system version: iOS 11.0 / Android™ 7.0;

• The product must be installed indoors, in a place free from humidity and vibrations, and away from heat sources;

• Ensure that the installation location has a standard 2.4 GHz Wi-Fi signal with an internet connection and that the network supports the number of devices connected to it;

• The product comes from the factory with a battery installed, protected by a plastic film. On first use, pull the tab on the battery's protective film to release the product's power supply.
