Technical Specifications

• Voltage: 100-240V~ 50-60Hz | automatic dual voltage;
• Power consumption: <1W;
• Operating temperature: -5° to +40°C;
• Electrical Connection: Directly into the E27 socket in your home;
• Energy savings of up to 75%;
• It controls any type of light bulb with E27 sockets;
• Easy installation;
• High immunity to noise;
• Sensor coverage angle: 2 areas of 164º each (total 328º coverage);
• Sensor range: up to Ø 7m (height of 2.4 m) at 25°C.
• Time settings: 1 and 30 seconds, 1, 3, 5, 10, 15, 20, 25, 30 and 45 seconds, 1, 2, 3 and 4 hours;
• Light Sensor (LUX-PHOTOCELL): MIN (at night), MAX (dusk) and OFF (without photocell);
• Sensitivity adjustment: 1 (sudden movements) to 3 (greater range);
• It has a GREEN LED indicator for operation and detection – when the product is operating in Relay Function mode, the LED oscillates (blinks slowly and gradually);
• It has a RED LED to confirm successful recording of the configured parameters;
• The heat source to be detected (people, etc.) must be at least 3°C different from the ambient temperature where the sensor is installed;
• For indoor and outdoor use. WARNING: Outdoor use must be protected from the elements (rain and sunlight), and it is recommended to set the sensitivity to minimum to avoid triggering by air currents.
• Lamp Friend: load activation system with low electrical voltage < 50 V, increasing the lifespan of the assembly (lamps, ballast and sensor);
• Composition: plastic components, electronic components and metal alloys;
• Relay Function: The sensor functions as a timed photocontrol relay. At dusk, it keeps the load switched on for the programmed time (0:30 to 12 hours) and then returns to sensor function.
• RESET function: Returns the product settings to factory defaults;
• Warranty: 2 years;
• Command Power:

Installation

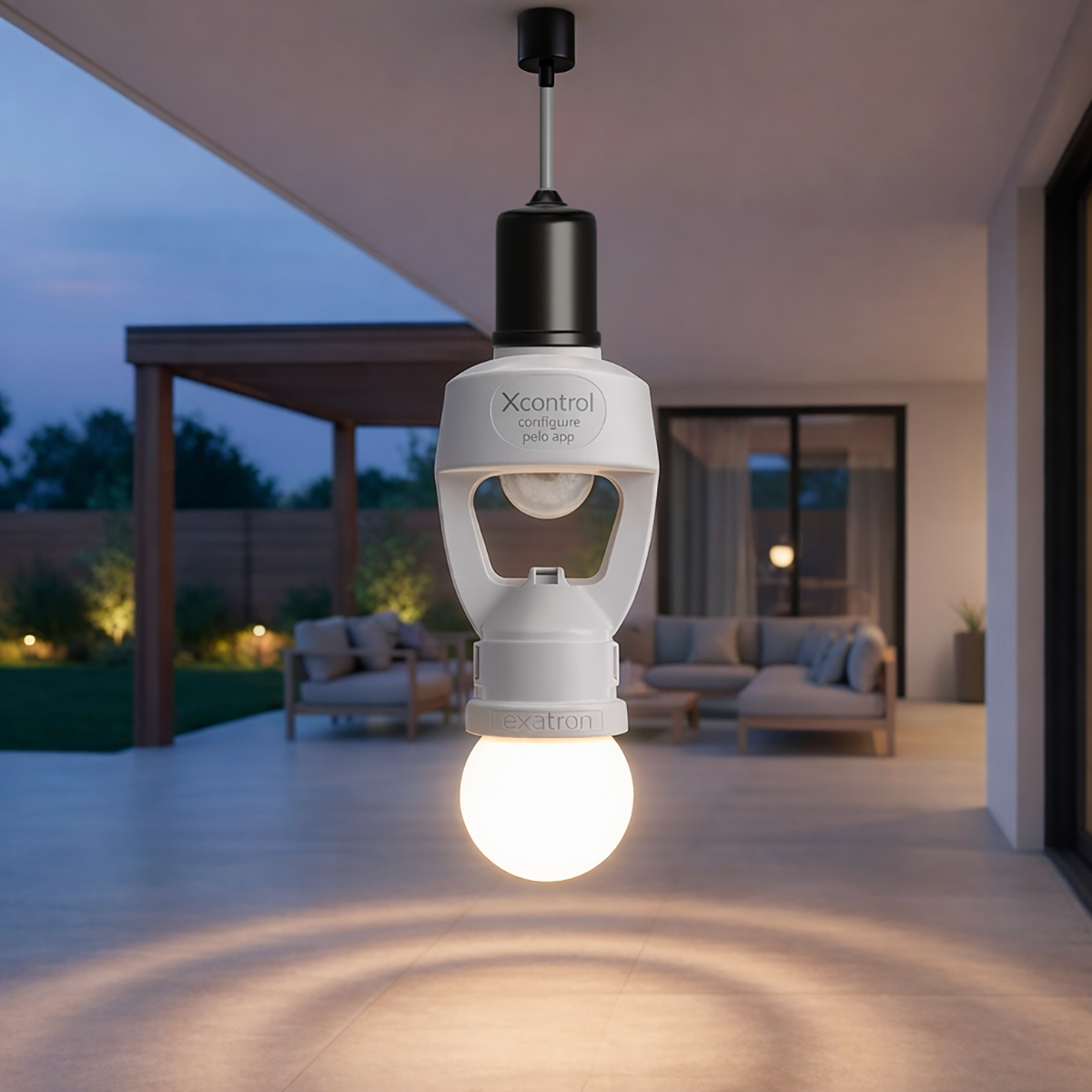

Easy to install, this product is ideal for automatic lighting control, turning the light on when people are present and automatically turning it off after a programmed time when the sensor detects no presence. It can be installed to control lighting in balconies, verandas, kiosks, corridors, staircases, and other indoor and outdoor areas of residential and/or commercial properties (protected from the elements).
