Technical Specifications

• Rated voltage: 100-240V~;
• Operating frequency: 50/60Hz;
• Indoor installation;

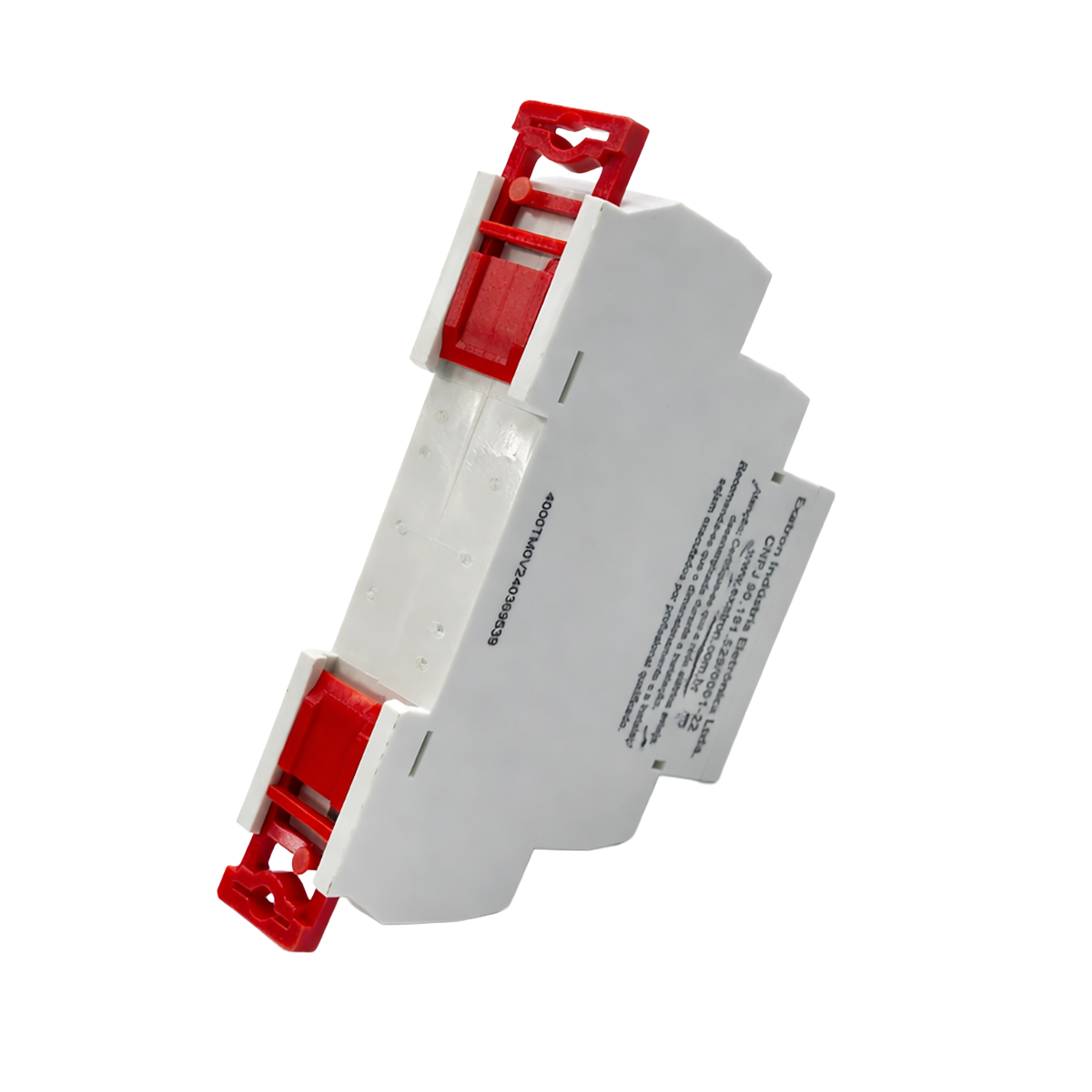

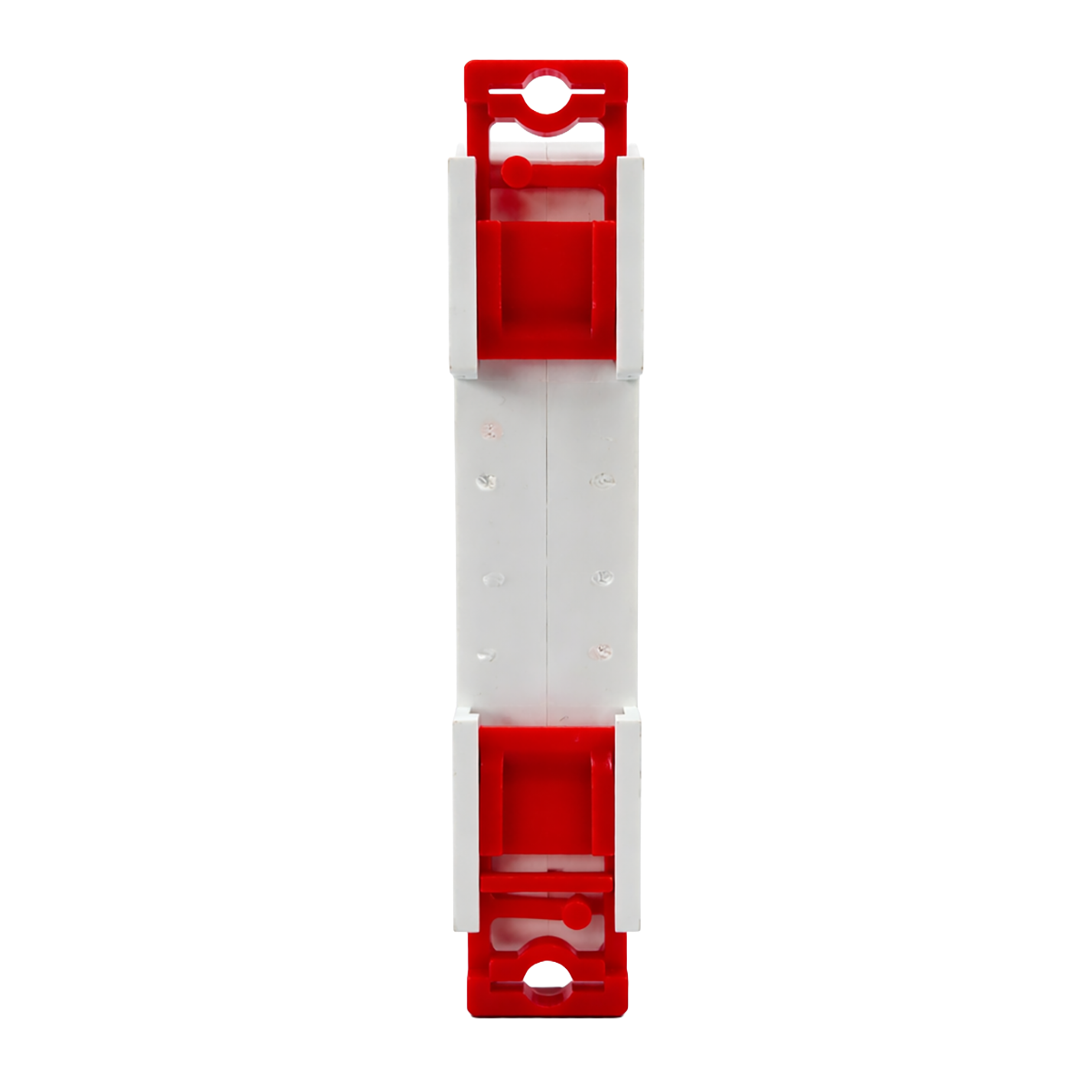

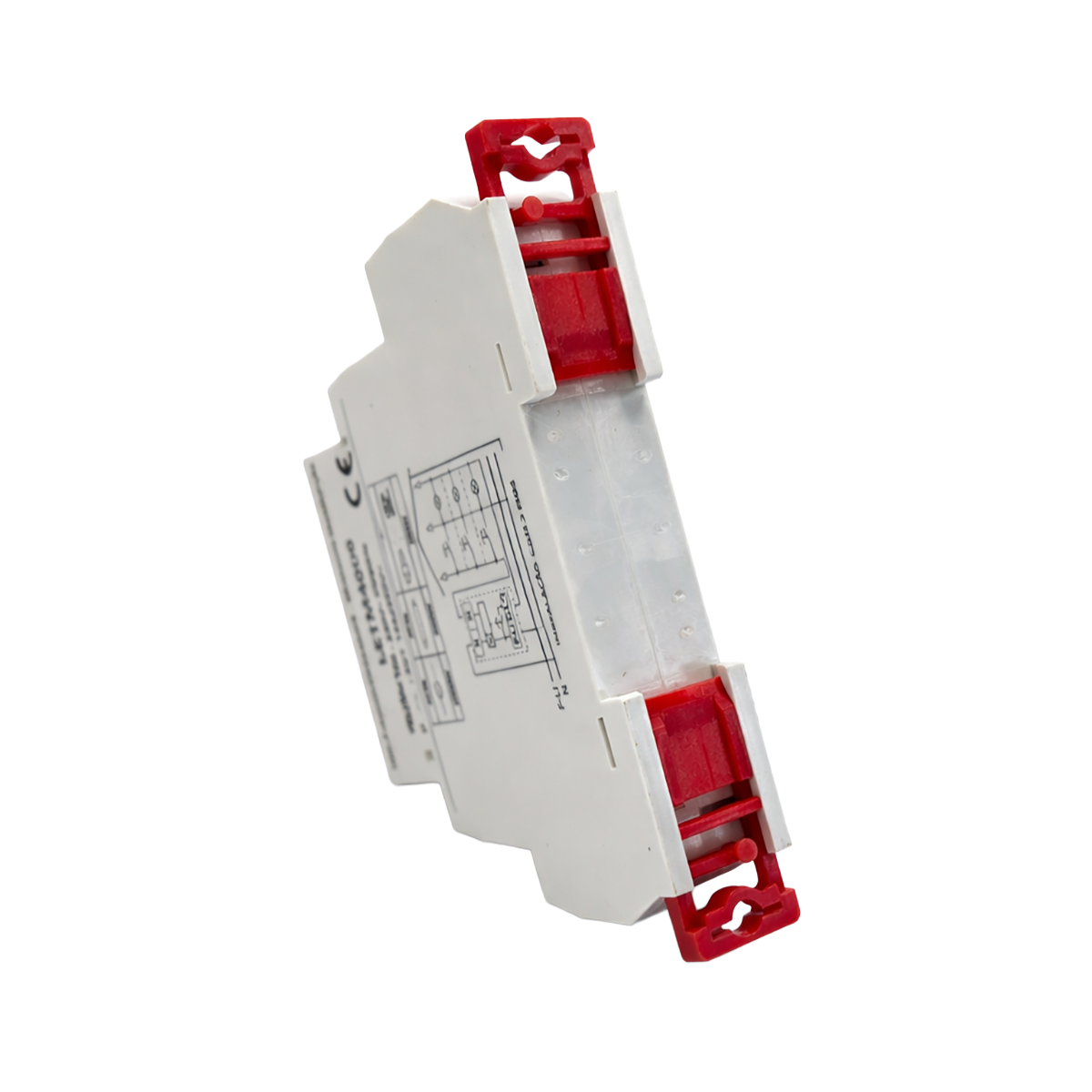

• Mounting: 35mm DIN rail;
• Electrical lifespan: >100,000 cycles (AC1 load) = resistive;
• Note: In accordance with IEC 60947-5-1, IEC 60669-2-3 and EN 61812-1 standards;
• Time settings: 0.5 seconds, 1.5, 3, 6.5, 10, 12, 15 and 36 minutes and 1 hour;
• APS Function: Self-protection system against improper installation caused by a stuck push button (red LED lit). The timer will turn off the lights, restarting operation after the push button is opened or the short circuit is removed;
• Indicator LEDs: green indicates charging is on; red indicates the switch is activated or locked;
• EZNEON: allows the use of pushbuttons with neon/LED (maximum current 50mA – sum of the signaling switches);

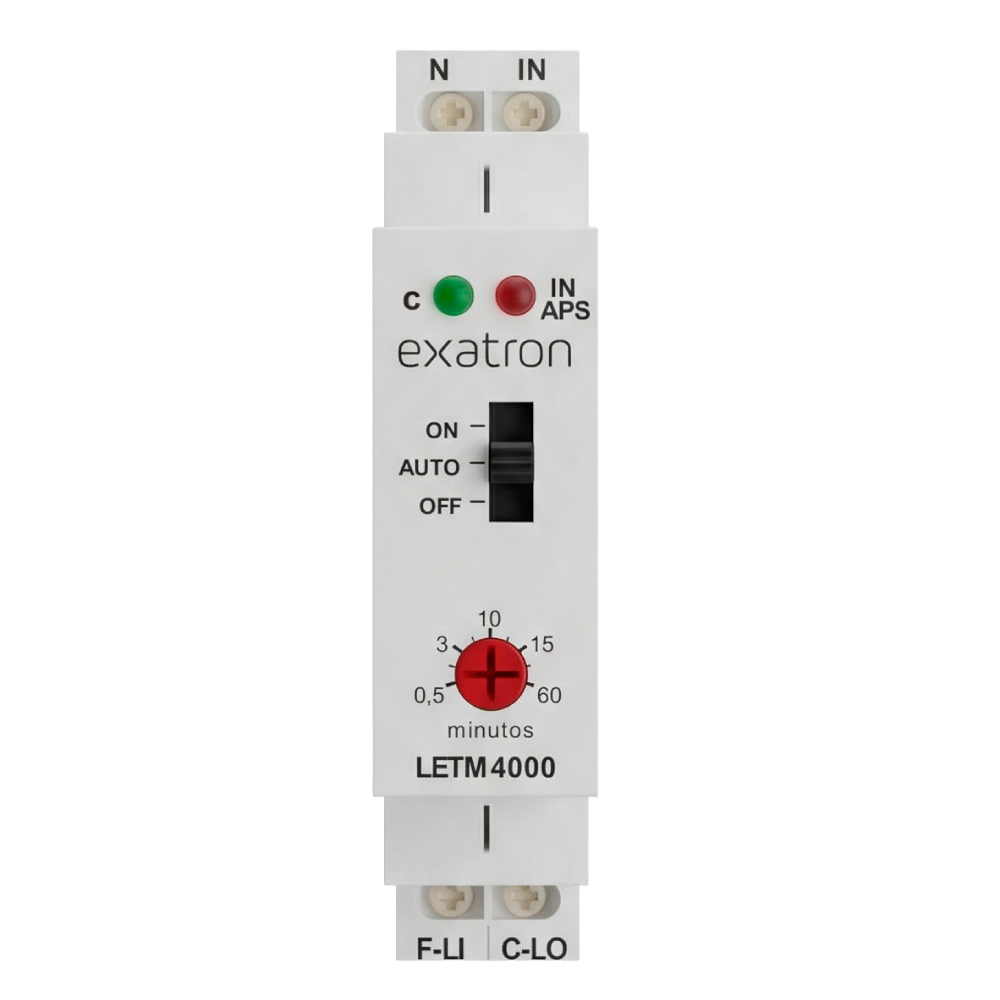

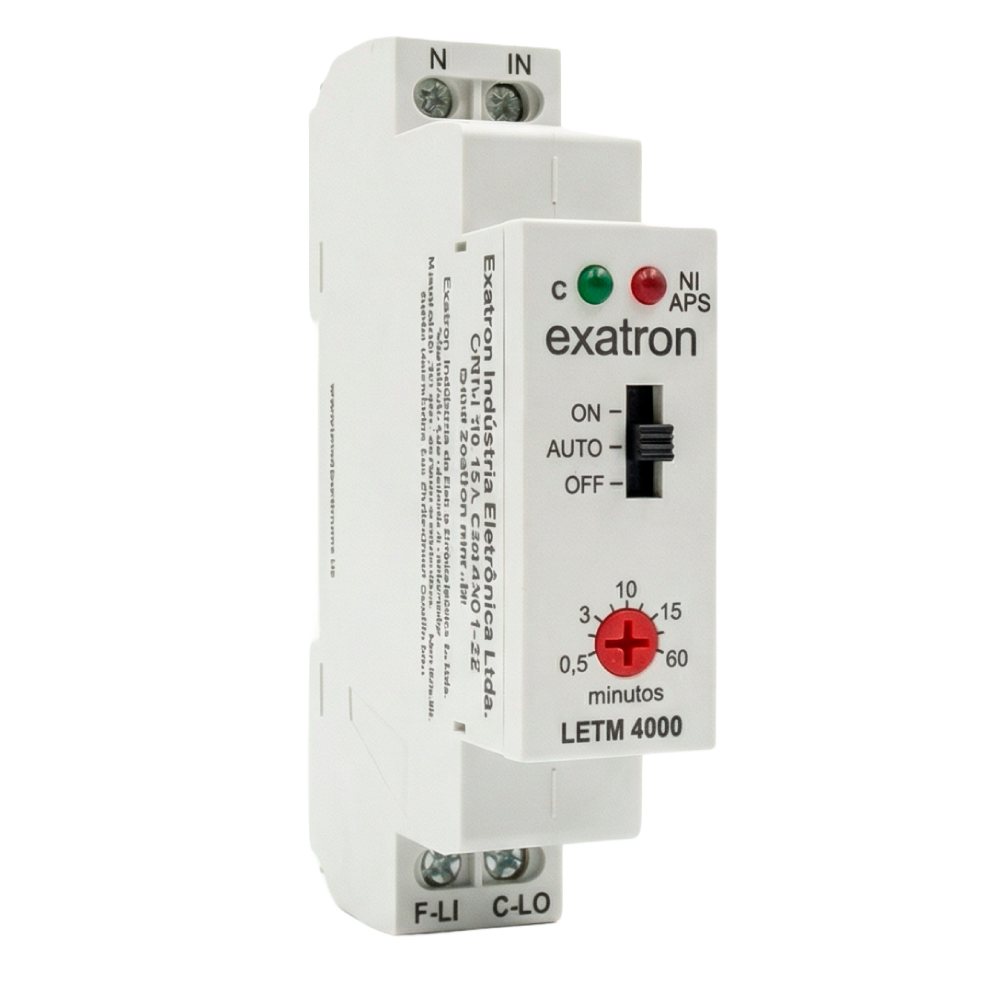

• Selector key function: AUTO-ON-OFF;
• Time reset after the last call of the push button;
• Made from flame-retardant material;
• Specifically for electrical panels;
• Operating temperature: -5°C to +55°C;
• Material: Flame-retardant polyamide resin;
• Dimensions: 90x64x18mm;
• Protection rating: IP20.
• Control power:

Consult the appliance manufacturer's instructions regarding the use of the external controller.

Installation

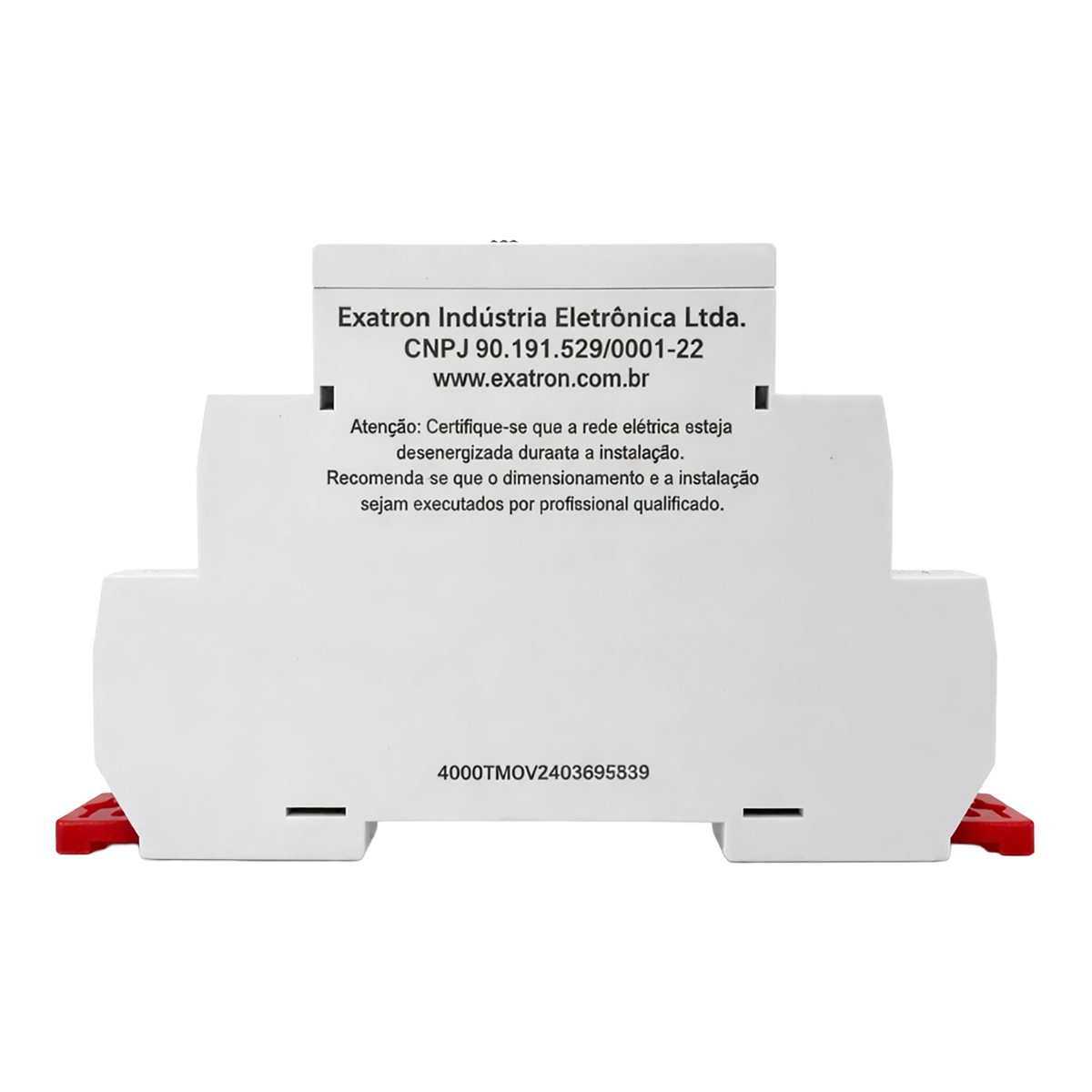

• Make sure the power is off during installation.
• Attach the minute indicator to the 35mm DIN rail.
• It is recommended that the sizing and installation be carried out by a qualified professional.

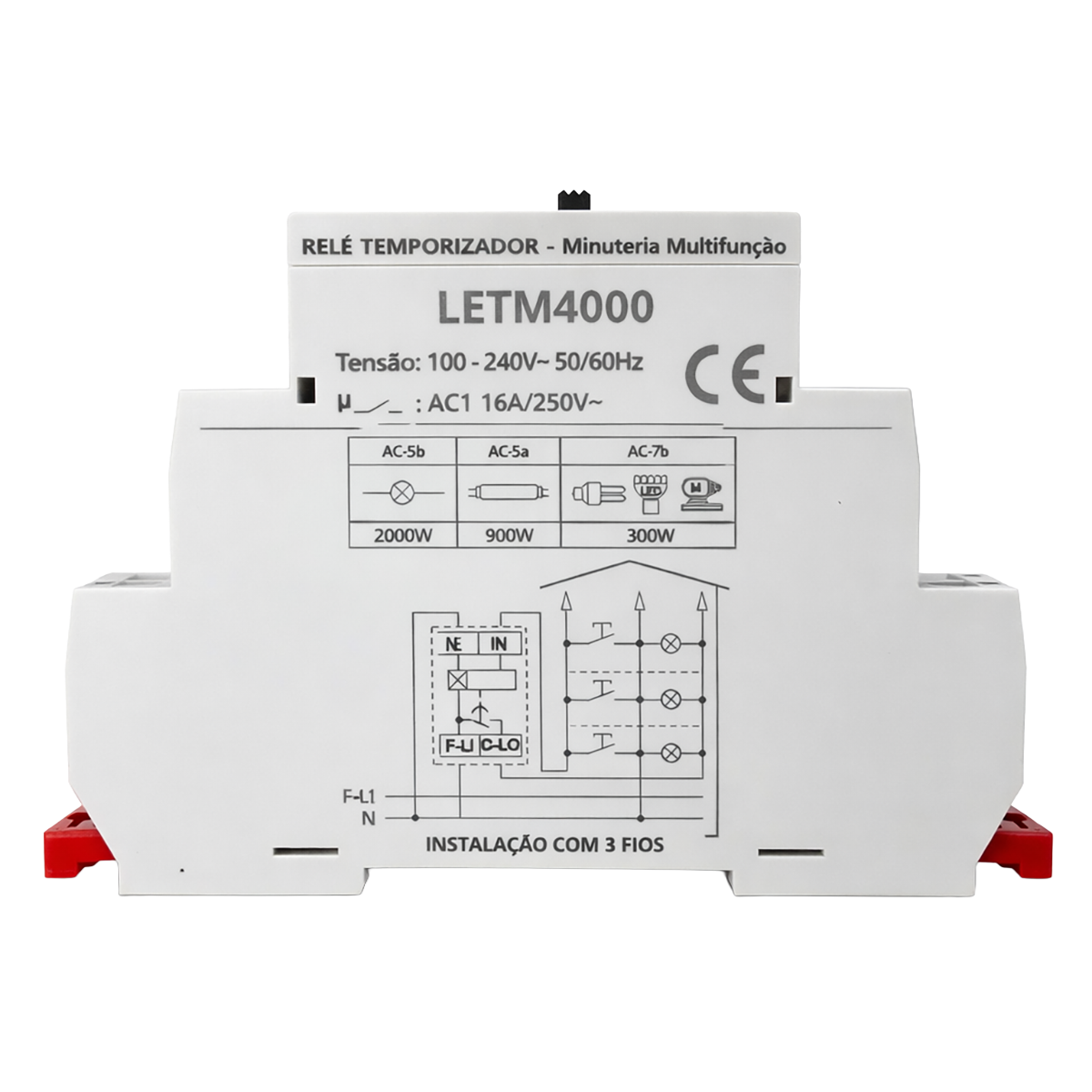

• Connect the wires according to the assembly diagram (see the complete manual).

How it works:

*After 3 seconds, the switch turns off the load.

WARNING: APS = regardless of the selector switch position, after the load is activated by the switch for more than 3 seconds, the load is deactivated.
