Smart Bat Switch - 1 button
102337202310116526a1d913bc6 1
102404202310116526a1f467ded 1
Smart Bat Switch - 1 button
102337202310116526a1d913bc6 1
102404202310116526a1f467ded 1

Information

Technical Specifications

• Power supply: 3V – CR2032 battery;

• Standby power consumption: 0.010mA;

• Dimensions: 86x86x15.5mm;

• Technology: BLE SIG Mesh 2.4GHz;

• Encryption: AES;

• Maximum distance from the Wi-Fi/BLE SIG Mesh Gateway: up to 10m without obstacles;

• Operating temperature: 0°C to 40°C;

• Colors: White or Black;

• Warranty: 2 years.



Installation

• Configure the Smart Bat Switch using the myhouse X app, available for download on Google Play and the App Store. Minimum operating system version: iOS 11.0 / Android™ 7.0;

• The product must be installed indoors, in a place free from humidity and vibrations, and away from heat sources;

• This product features Bluetooth BLE SIG Mesh communication. To take full advantage of the automation features, you need a Wi-Fi/BLE SIG Mesh Gateway so you can interact with other devices in the myhouse X line. Ensure that the installation location has a Wi-Fi/BLE SIG Mesh Gateway and a standard 2.4GHz Wi-Fi signal with an internet connection;

• Before starting the installation, check if the location allows Bluetooth communication with the Gateway, which can be done using your smartphone. Remember that this product uses BLE SIG Mesh technology, therefore to test its operation you need a Gateway device that must be installed where there is a 2.4GHz Wi-Fi signal;

• After closing the cover, insert the double-sided tape or screw the back cover into place where the Smart Switch will be fixed. Note: Screws are not included with the product.

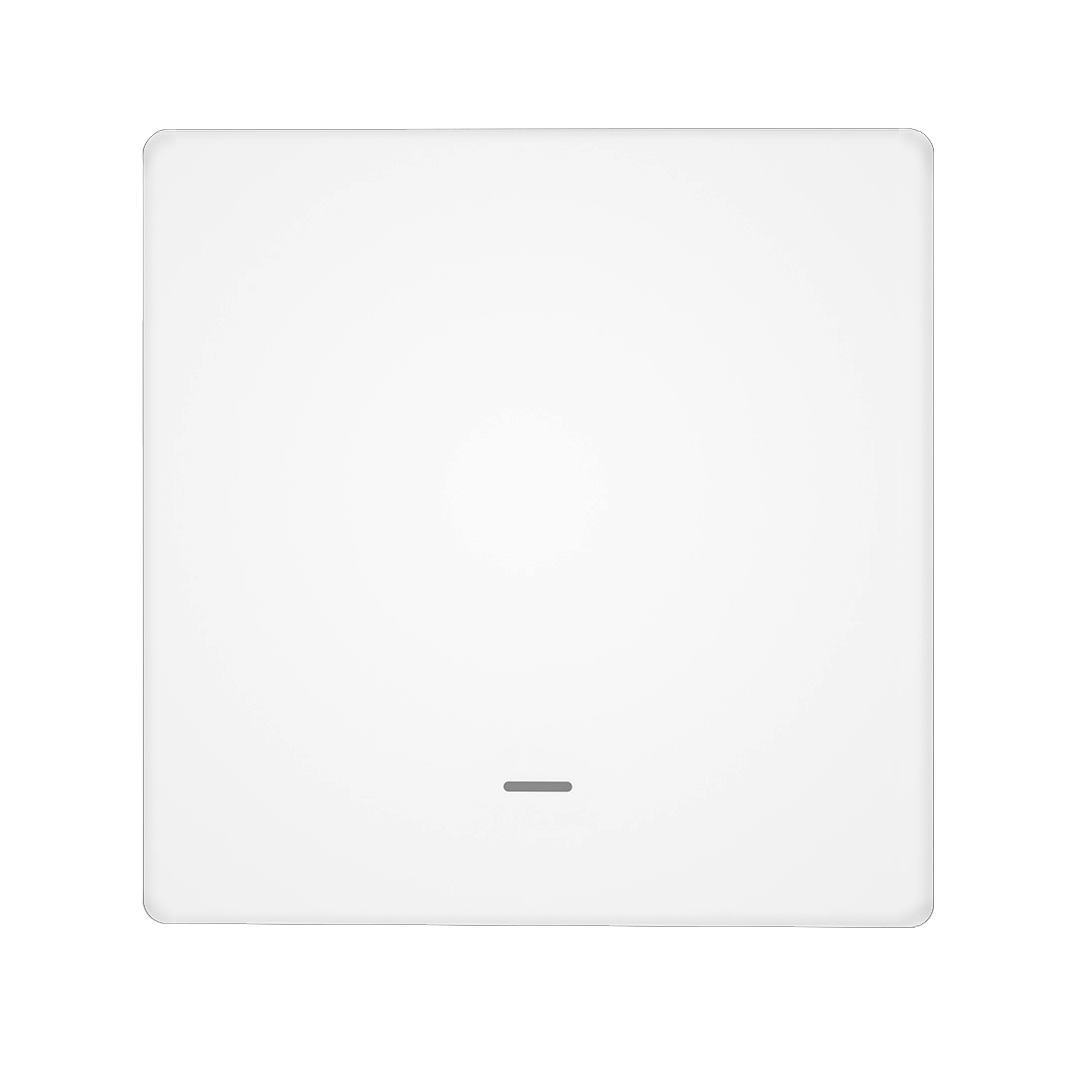

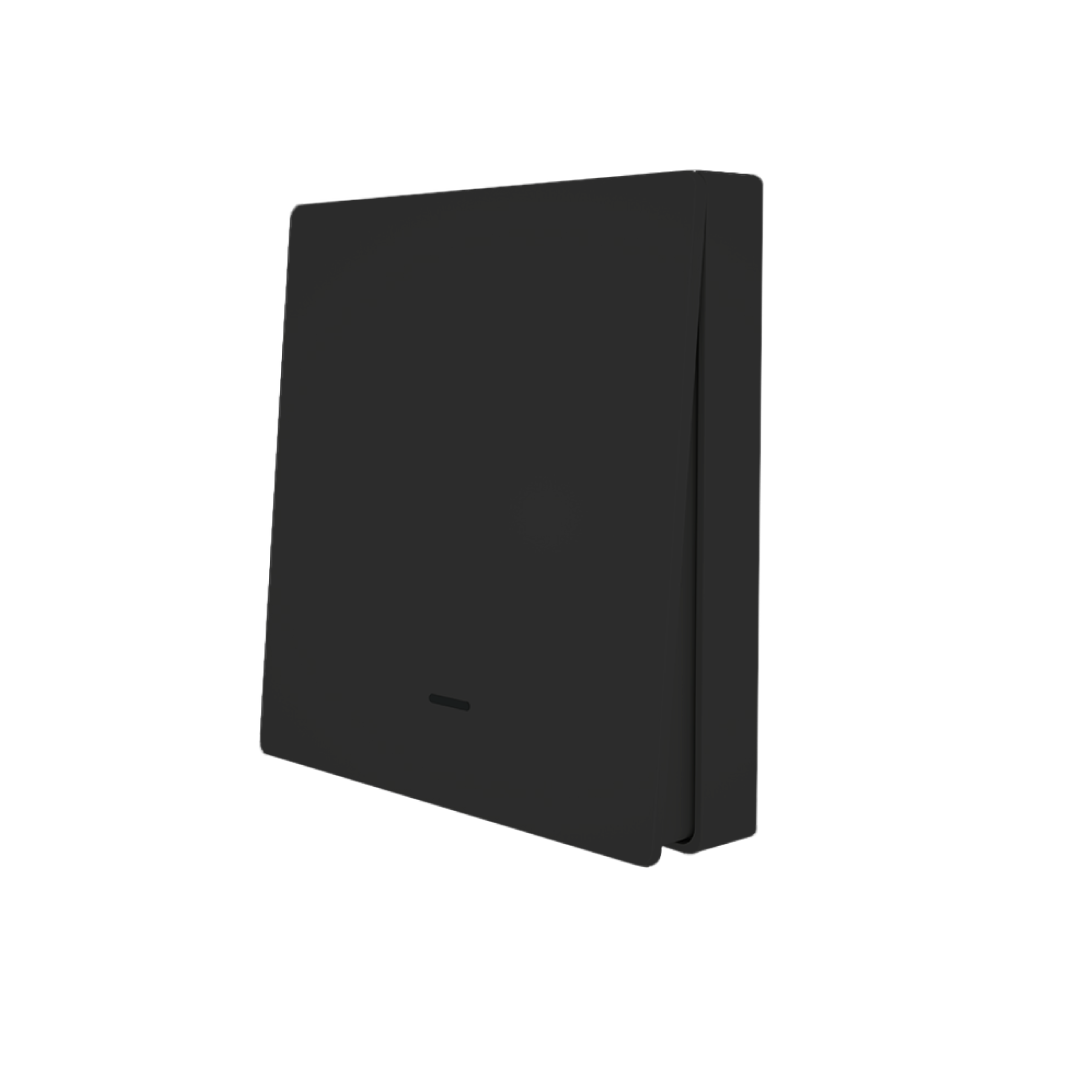

Smart Bat Switch – 1 button

available

Code: LSIF6101

Description

Revolutionize and connect spaces with the myhouse X line from Exatron! More security, quality, and innovation in home automation.

The Smart Bat Switch – 1 (LSIF6101) allows you to create automation scenes in environments, integrating smart devices into these scenes and offering up to 3 trigger modes per key. It features BLE SIG Mesh technology to avoid overloading your Wi-Fi router, and in conjunction with the Smart Wi-Fi/BLE SIG Mesh Gateway Interface, it allows you to have up to 128 devices occupying only one channel of your Wi-Fi network.

Easy to install, it provides a new way to control your electrical loads through other devices in the line and the myhouse X app.



13613-23-15596

"This equipment is not entitled to protection against harmful interference and may not cause interference to duly authorized systems."

"This product is approved by ANATEL, in accordance with the procedures regulated by Resolution No. 715, of October 23, 2019, and meets the applicable technical requirements."

"For more information, please visit the Anatel website: www.gov.br/anatel/pt-br/"

Download

Packaging

User manual

R$ 95,76

Shipped within 7 business days.
Price* for end consumer

Information

Technical Specifications

• Power supply: 3V – CR2032 battery;

• Standby power consumption: 0.010mA;

• Dimensions: 86x86x15.5mm;

• Technology: BLE SIG Mesh 2.4GHz;

• Encryption: AES;

• Maximum distance from the Wi-Fi/BLE SIG Mesh Gateway: up to 10m without obstacles;

• Operating temperature: 0°C to 40°C;

• Colors: White or Black;

• Warranty: 2 years.



Installation

• Configure the Smart Bat Switch using the myhouse X app, available for download on Google Play and the App Store. Minimum operating system version: iOS 11.0 / Android™ 7.0;

• The product must be installed indoors, in a place free from humidity and vibrations, and away from heat sources;

• This product features Bluetooth BLE SIG Mesh communication. To take full advantage of the automation features, you need a Wi-Fi/BLE SIG Mesh Gateway so you can interact with other devices in the myhouse X line. Ensure that the installation location has a Wi-Fi/BLE SIG Mesh Gateway and a standard 2.4GHz Wi-Fi signal with an internet connection;

• Before starting the installation, check if the location allows Bluetooth communication with the Gateway, which can be done using your smartphone. Remember that this product uses BLE SIG Mesh technology, therefore to test its operation you need a Gateway device that must be installed where there is a 2.4GHz Wi-Fi signal;

• After closing the cover, insert the double-sided tape or screw the back cover into place where the Smart Switch will be fixed. Note: Screws are not included with the product.
