Smart 4x2 Socket

Information

Technical Specifications

• Voltage: 100-240V~ 50/60Hz;

• Power consumption: <1.5W;

• Rated resistive current: 10A;

• Technology: BLE SIG Mesh 2.4GHz;

• Maximum distance from the Wi-Fi/BLE SIG Mesh Gateway: Depends on the number of devices and repeater routes;

• Maximum distance between LSTO6000 units for BLE SIG Mesh repetition: Up to 20 meters in an open environment;

• Encryption: AES;

• Operating temperature: 0°C to 40°C;

• Dimensions: 122x82x41.5mm;

• Control power:

Voltage:Light bulbsEngineResistive
FP<0.7FP≥0.7
127V~120W250W300W1000W
220V~200W350W1800W

Note: The table above shows the maximum power the product can handle; the power consumed should not exceed the values shown in the table. This device should not be used to directly drive motors and electrical equipment that have a starting current greater than the device's maximum current. For your safety, do not open the product under any circumstances.



Installation

• Configure the 4x2 Smart Plug using the myhouse X app, available for download on Google Play and the App Store. Minimum operating system version: iOS 11.0 / Android™ 7.0;

• Installation directly into 4x2 boxes;

• For indoor use with BLE SIG Mesh and Wi-Fi coverage, protected from the elements. This product is designed for installation in accordance with the National Electrical Code and local regulations in Brazil (NBR5410).

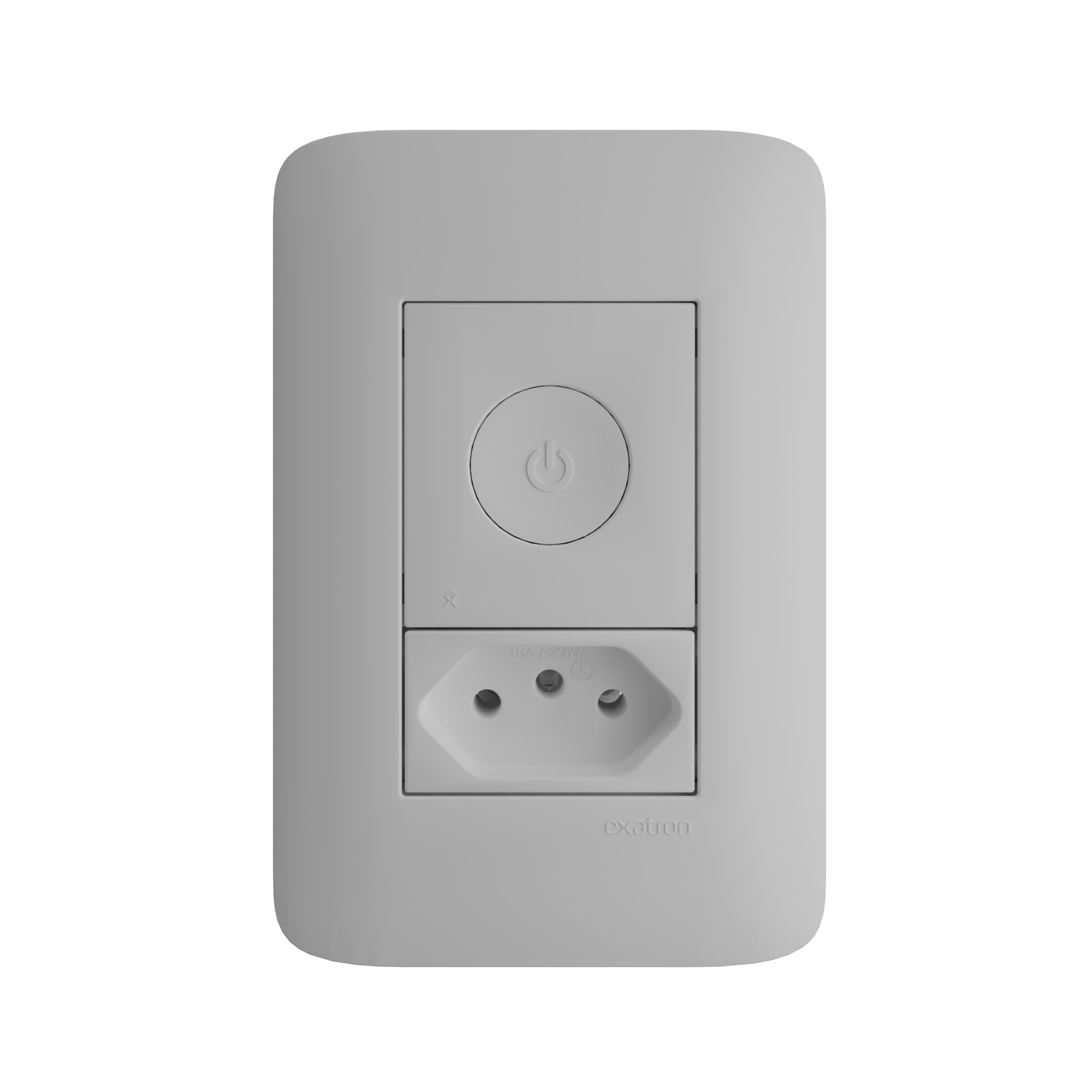

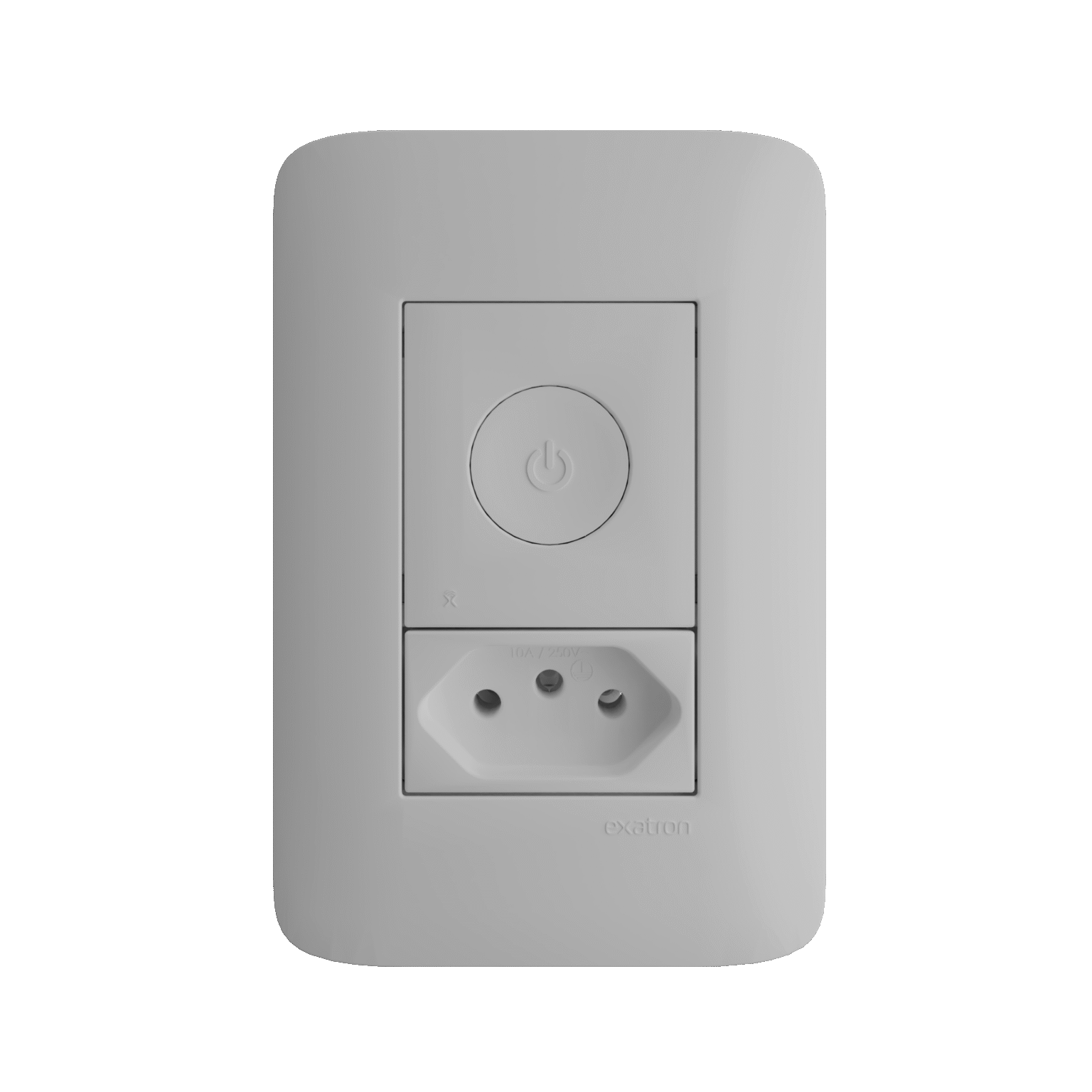

Smart 4x2 Socket

available

Code: LSTO6000

Description

Revolutionize and connect spaces with the myhouse X line from Exatron!

The Smart 4x2 Socket (LSTO6000) is an intelligent control for equipment plugged into the socket, such as lamps, electrical appliances, electronics and other household appliances.

It is used to turn on and off, monitor energy consumption, time and automate the power supply to equipment, enabling the convenience of remote monitoring. The product allows you to directly control your electrical loads, integrating smart devices into your automation. It can be activated directly via a touch button, using the myhouse X app, or by voice command from Amazon Alexa or Google Assistant.

It features BLE SIG Mesh technology to avoid overloading your Wi-Fi router, and together with the Smart Wi-Fi/BLE SIG Mesh Gateway Interface, it allows you to have up to 128 devices occupying only one channel of your Wi-Fi network.



"Incorporates a product approved by Anatel under number 07475-21-11765."

"This equipment is not entitled to protection against harmful interference and may not cause interference to duly authorized systems."

"For more information, please visit the Anatel website: www.gov.br/anatel/pt-br/"

Download

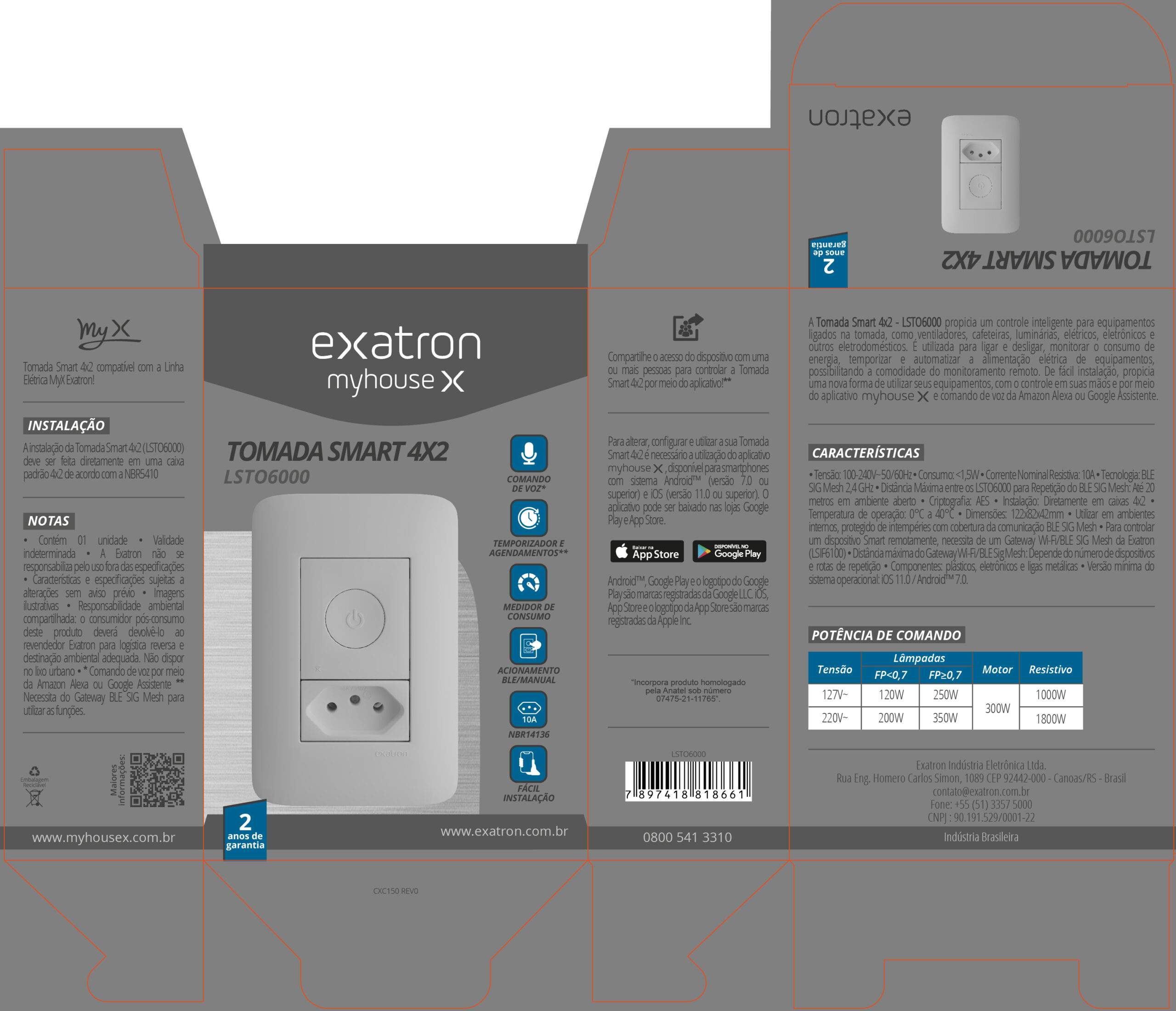

Packaging

User manual

R$ 101,34

Shipped within 7 business days.
Price* for end consumer

Information

Technical Specifications

• Voltage: 100-240V~ 50/60Hz;

• Power consumption: <1.5W;

• Rated resistive current: 10A;

• Technology: BLE SIG Mesh 2.4GHz;

• Maximum distance from the Wi-Fi/BLE SIG Mesh Gateway: Depends on the number of devices and repeater routes;

• Maximum distance between LSTO6000 units for BLE SIG Mesh repetition: Up to 20 meters in an open environment;

• Encryption: AES;

• Operating temperature: 0°C to 40°C;

• Dimensions: 122x82x41.5mm;

• Control power:

Voltage:Light bulbsEngineResistive
FP<0.7FP≥0.7
127V~120W250W300W1000W
220V~200W350W1800W

Note: The table above shows the maximum power the product can handle; the power consumed should not exceed the values shown in the table. This device should not be used to directly drive motors and electrical equipment that have a starting current greater than the device's maximum current. For your safety, do not open the product under any circumstances.



Installation

• Configure the 4x2 Smart Plug using the myhouse X app, available for download on Google Play and the App Store. Minimum operating system version: iOS 11.0 / Android™ 7.0;

• Installation directly into 4x2 boxes;

• For indoor use with BLE SIG Mesh and Wi-Fi coverage, protected from the elements. This product is designed for installation in accordance with the National Electrical Code and local regulations in Brazil (NBR5410).
