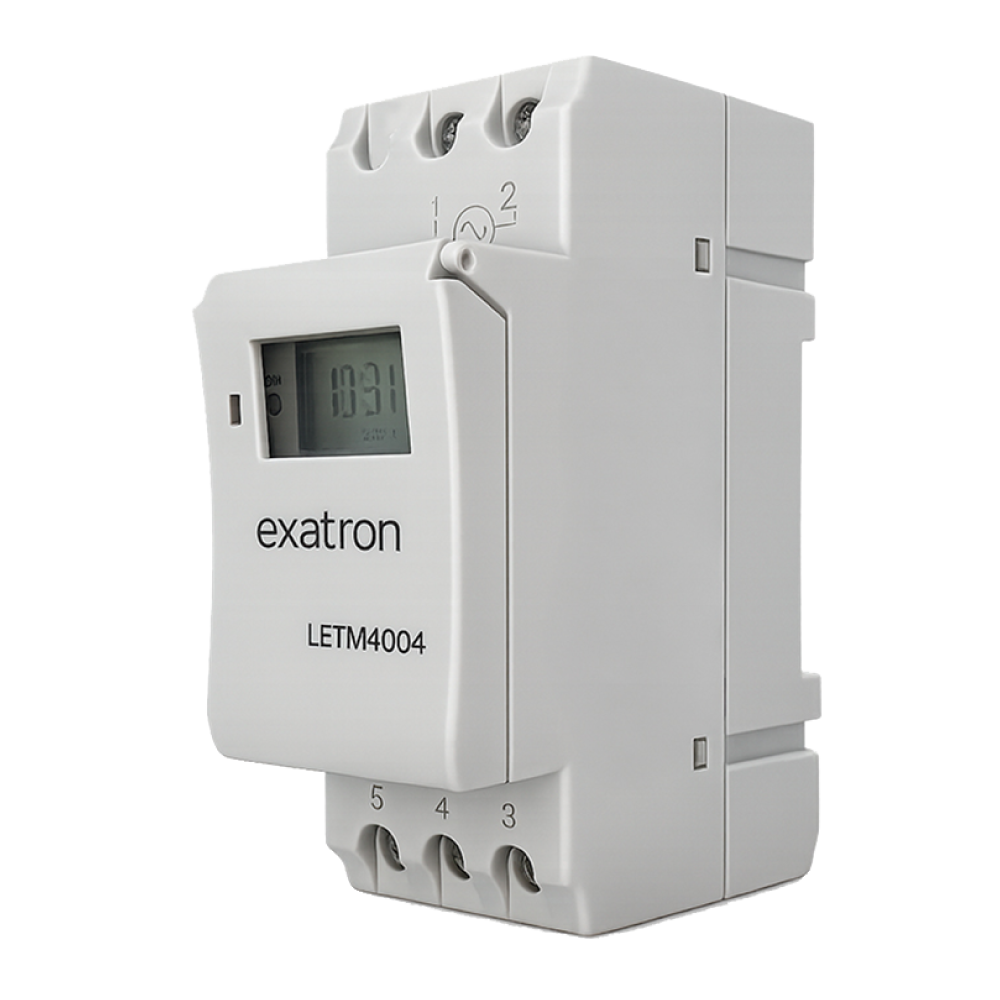

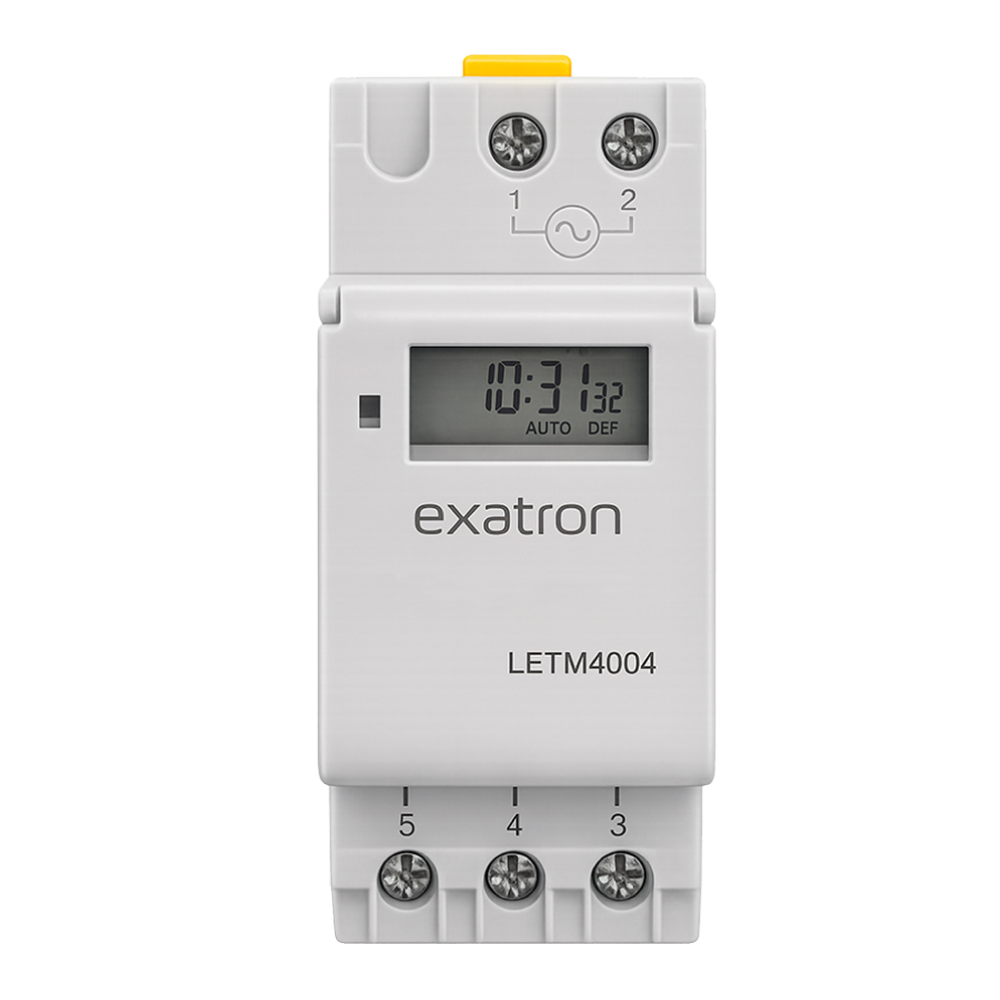

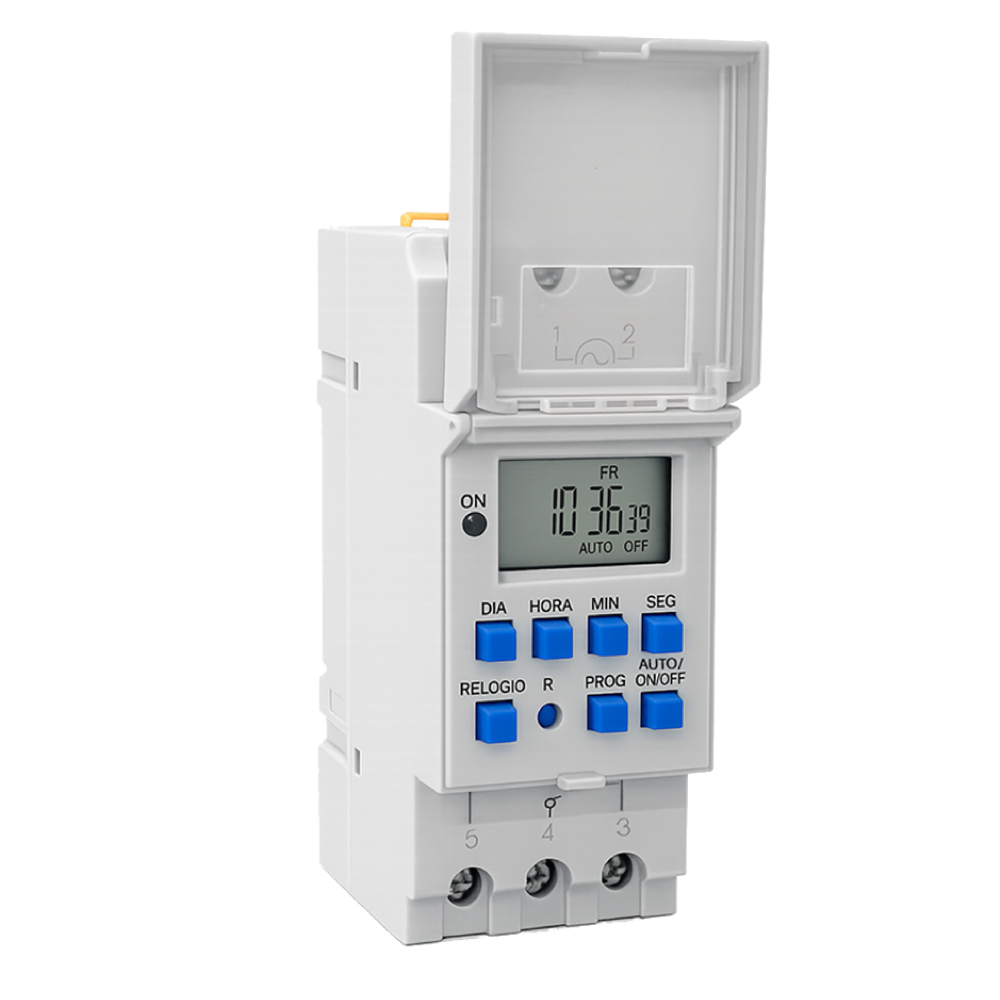

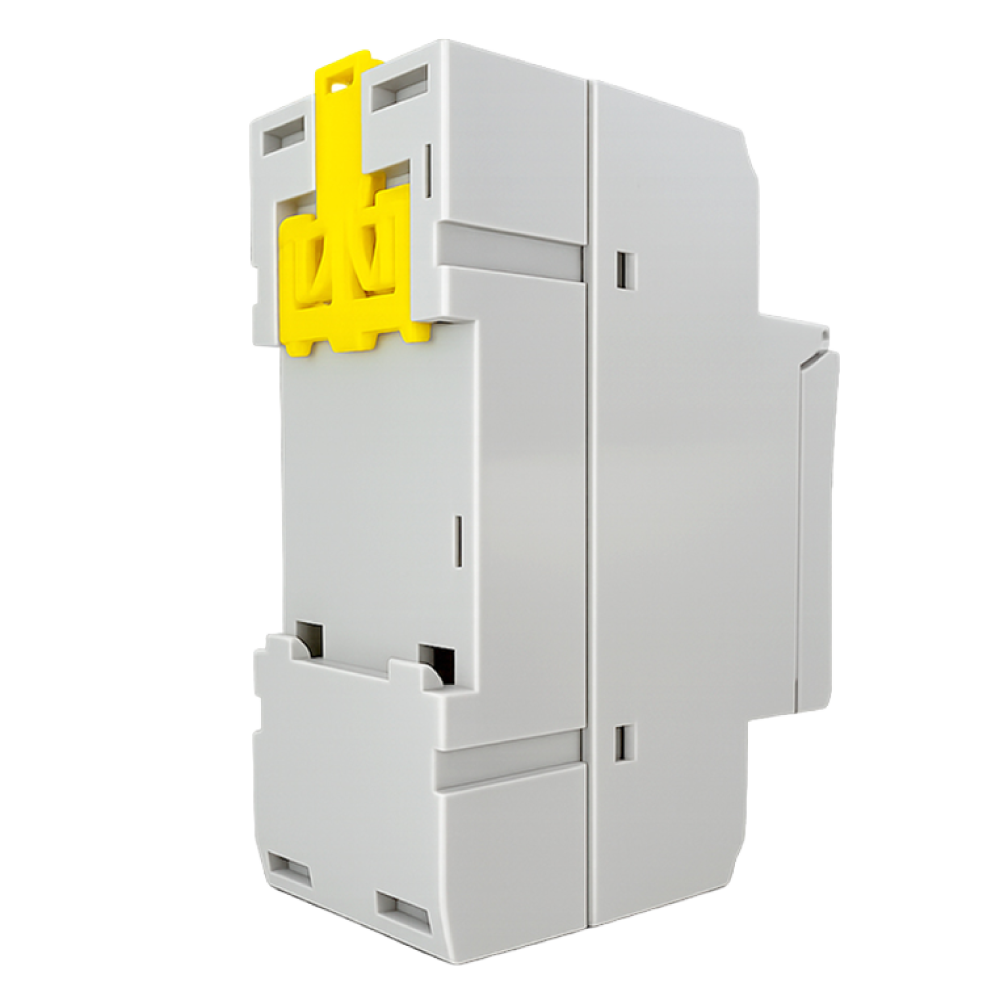

Digital Timer Switch for DIN Rail
Digital Timer Switch for DIN Rail
Digital Timer Switch for DIN Rail
Digital Timer Switch for DIN Rail
Digital Timer Switch for DIN Rail
Digital Timer Switch for DIN Rail
Digital Timer Switch for DIN Rail
Digital Timer Switch for DIN Rail
Digital Timer Switch for DIN Rail
Digital Timer Switch for DIN Rail
Digital Timer Switch for DIN Rail
Digital Timer Switch for DIN Rail
Miniatura do vídeo

Information

Technical Specifications

  • Advanced pre-configuration up to one week in advance;
  • Rechargeable NI-MH battery to save programming in case of power outage;
  • Voltage: 100-240V~ 50/60Hz;
  • Maximum power consumption: 0.7W;
  • Voltage Limit: ±10%;
  • Accuracy: ≤2sec/day @25°C / 99%/month;
  • Programs: 40 programs (20 ON and 20 OFF);
  • Display: LCD;
  • Switching contact: 1 switch;
  • Operating temperature: 0 to 40°C;
  • Dimensions: 87x65x36mm;
  • Protection rating: IP20;
  • Warranty: 1 year.
  • Control power:
Voltage (V)ResistiveLEDEngine
127V1100W150W180W
220V2200W250W300W

Consult the appliance manufacturer's instructions regarding the use of the external controller.

Installation

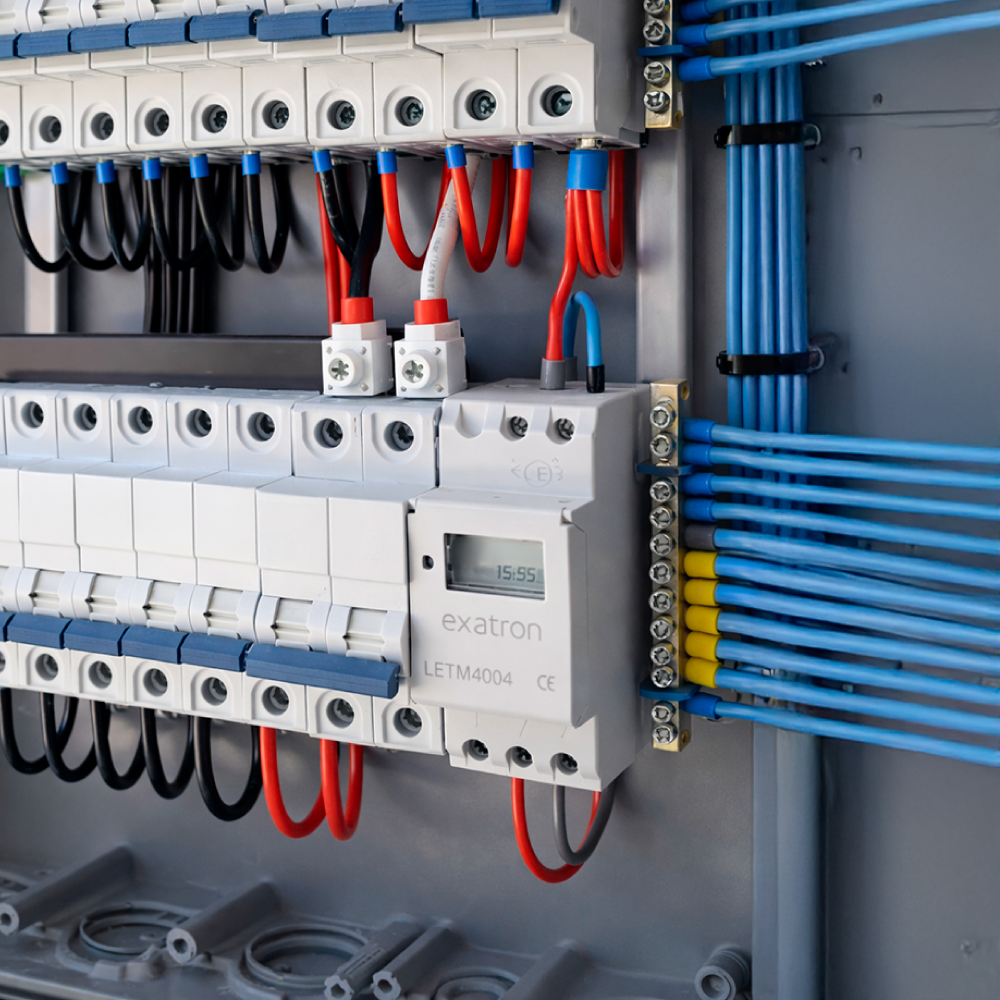

• DIN rail mounting 35. Indoor installation (IP20);

• Connection terminals: 0.5mm² (min.) / 2.5mm² (max.).

Digital Timer Switch for DIN Rail

available

Code: LETM4004

Description

The Exatron Digital Timer for DIN Rail (LETM4004) is ideal for turning electrical or electronic devices on and off at times programmed by the user, such as: spotlights, luminaires, illuminated signs, signal lights, TVs, radios, among others.

Download

Packaging

User manual

R$ 181,02

Shipped within 7 business days.
Price* for end consumer

Information

Technical Specifications

  • Advanced pre-configuration up to one week in advance;
  • Rechargeable NI-MH battery to save programming in case of power outage;
  • Voltage: 100-240V~ 50/60Hz;
  • Maximum power consumption: 0.7W;
  • Voltage Limit: ±10%;
  • Accuracy: ≤2sec/day @25°C / 99%/month;
  • Programs: 40 programs (20 ON and 20 OFF);
  • Display: LCD;
  • Switching contact: 1 switch;
  • Operating temperature: 0 to 40°C;
  • Dimensions: 87x65x36mm;
  • Protection rating: IP20;
  • Warranty: 1 year.
  • Control power:
Voltage (V)ResistiveLEDEngine
127V1100W150W180W
220V2200W250W300W

Consult the appliance manufacturer's instructions regarding the use of the external controller.

Installation

• DIN rail mounting 35. Indoor installation (IP20);

• Connection terminals: 0.5mm² (min.) / 2.5mm² (max.).
