Smart Glass Switch - 3 buttons
153033202310116526e9c92da5f 1
153057202310116526e9e1a6764 1
Smart Glass Switch - 3 buttons
153033202310116526e9c92da5f 1
153057202310116526e9e1a6764 1

Information

Technical Specifications

• Power supply: 100-240V~ 50/60Hz – Phase/Neutral;

• Power consumption: <1.0W;

• Stand by consumption: 0.1W;

• Rated Resistive Current: 10A maximum of the product;

• Dimensions: 122.5×82.5x38mm;

• Technology: BLE SIG Mesh 2.4GHz;

• Encryption: AES;

• Maximum distance from the Wi-Fi/BLE SIG Mesh Gateway: Up to 10m from the Gateway or BLE SIG Mesh device, without obstacles. Network size depends on the number of devices and repeater routes;

• BLE SIG Mesh signal repetition: Yes – repeats the BLE signal between devices that have the same technology and are on the same network;

• Operating temperature: 0°C to 40°C;

• Warranty: 2 years;

• Control Power:

VoltageLight bulbsEngineResistive
FP<0.7FP≥0.7
127V~80W150W300W1300W
220V~120W200W500W2200W

Note: The table above shows the maximum power that the assembly can handle, regardless of the number of switches. The sum of the power consumption should not exceed the values shown in the table. This device should not be used to directly operate motors and electrical equipment that have a starting current greater than the maximum current of the device. For your safety, do not open the product under any circumstances.



Installation

• Configure the Smart Glass Switch using the myhouse X app, available for download on Google Play and the App Store. Minimum operating system version: iOS 11.0 / Android™ 7.0;

• The product must be installed indoors, in a place free from humidity and vibrations, and away from heat sources;

• This product features Bluetooth BLE SIG Mesh communication. To take full advantage of the automation features, you need a Wi-Fi/BLE SIG Mesh Gateway so you can interact with other devices in the myhouse X line. Ensure that the installation location has a Wi-Fi/BLE SIG Mesh Gateway and a standard 2.4GHz Wi-Fi signal with an internet connection;

• Installation should be done directly into 4x2 boxes.

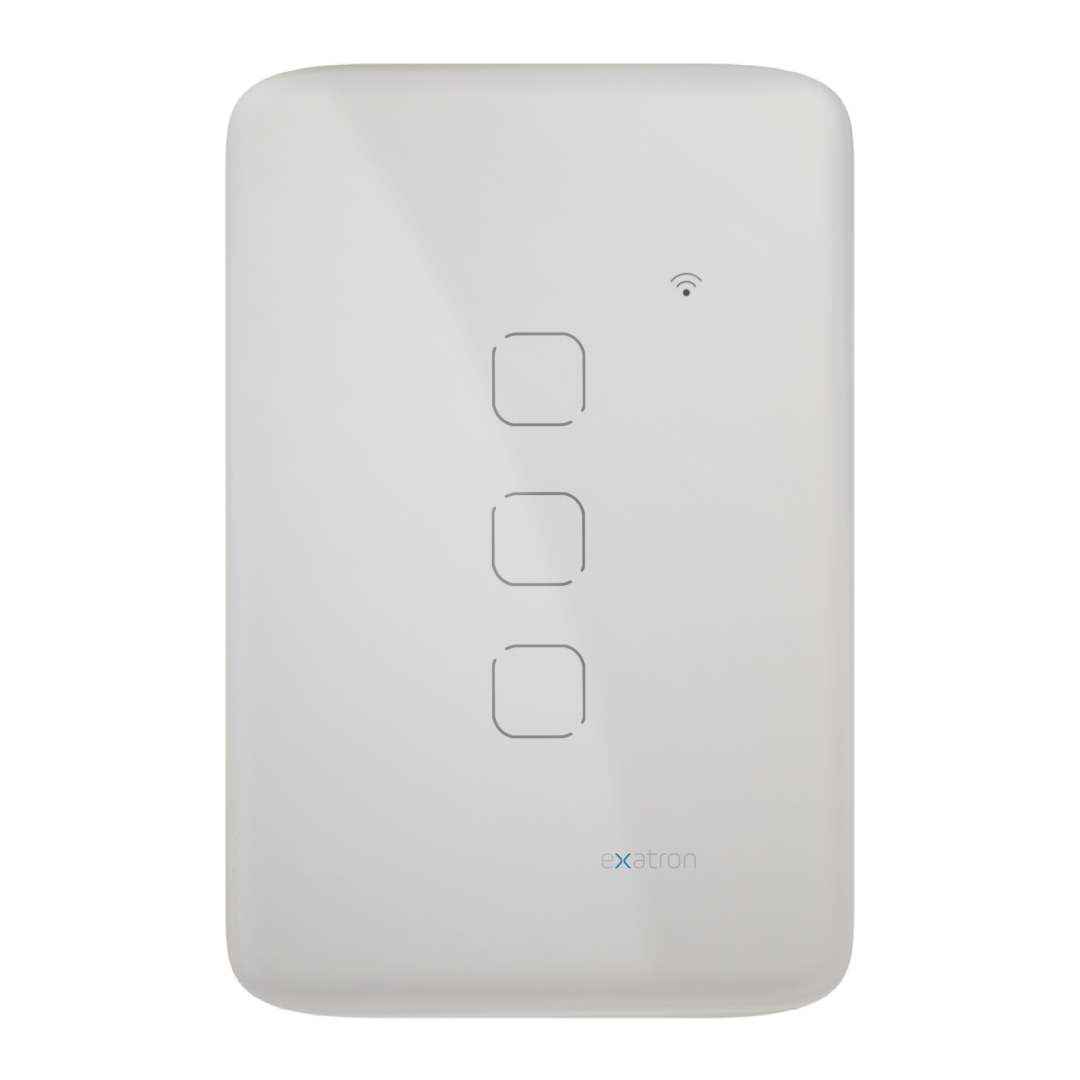

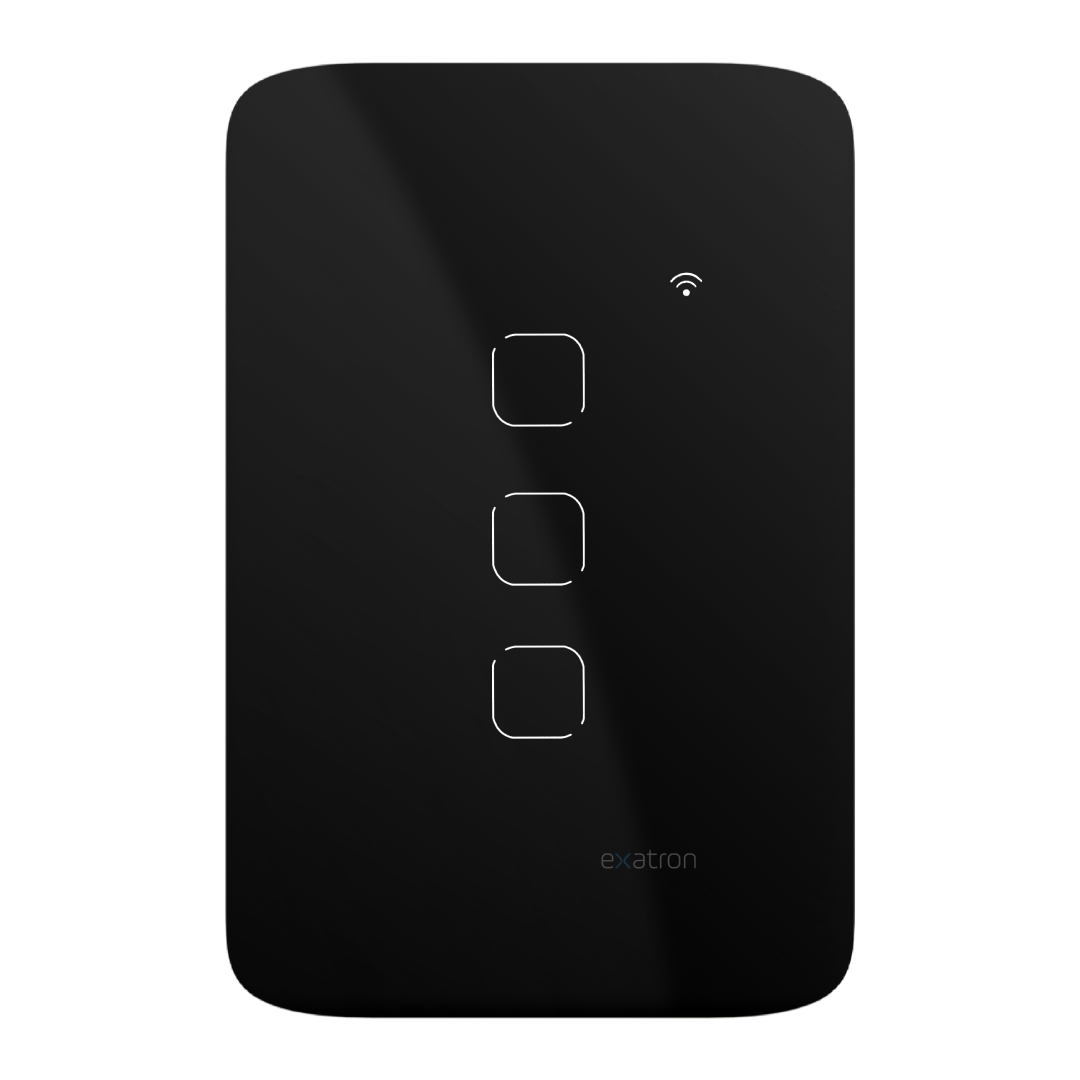

Smart Glass Switch – 3 buttons

available

Code: LSIF6106

Description

Revolutionize and connect spaces with the myhouse X line from Exatron! More security, quality, and innovation in home automation.

The Smart Glass Switch – 3 buttons (LSIF6106) allows you to directly control your lights and electrical loads, integrating smart devices into your home automation. It can be activated directly via the touch-sensitive button or using the myhouse X app.

It features BLE SIG Mesh technology to avoid overloading your Wi-Fi router, and together with the Smart Wi-Fi/BLE SIG Mesh Gateway Interface, it allows you to have up to 128 devices occupying only one channel of your Wi-Fi network.

This application is widely used when seeking to install multiple products on the same automation network, since BLE SIG Mesh technology distributes communication among its devices, increasing the coverage of commands transmitted on the BLE network, as these commands are repeated on each device that has this technology.

Easy to install, it provides a new way to control your electrical loads, through other devices in the line and the myhouse X app, and voice commands from Amazon Alexa or Google Assistant.



13614-23-15947

"This equipment is not entitled to protection against harmful interference and may not cause interference to duly authorized systems."

"This product is approved by ANATEL, in accordance with the procedures regulated by Resolution No. 715, of October 23, 2019, and meets the applicable technical requirements."

"For more information, please visit the Anatel website: www.gov.br/anatel/pt-br/"

Download

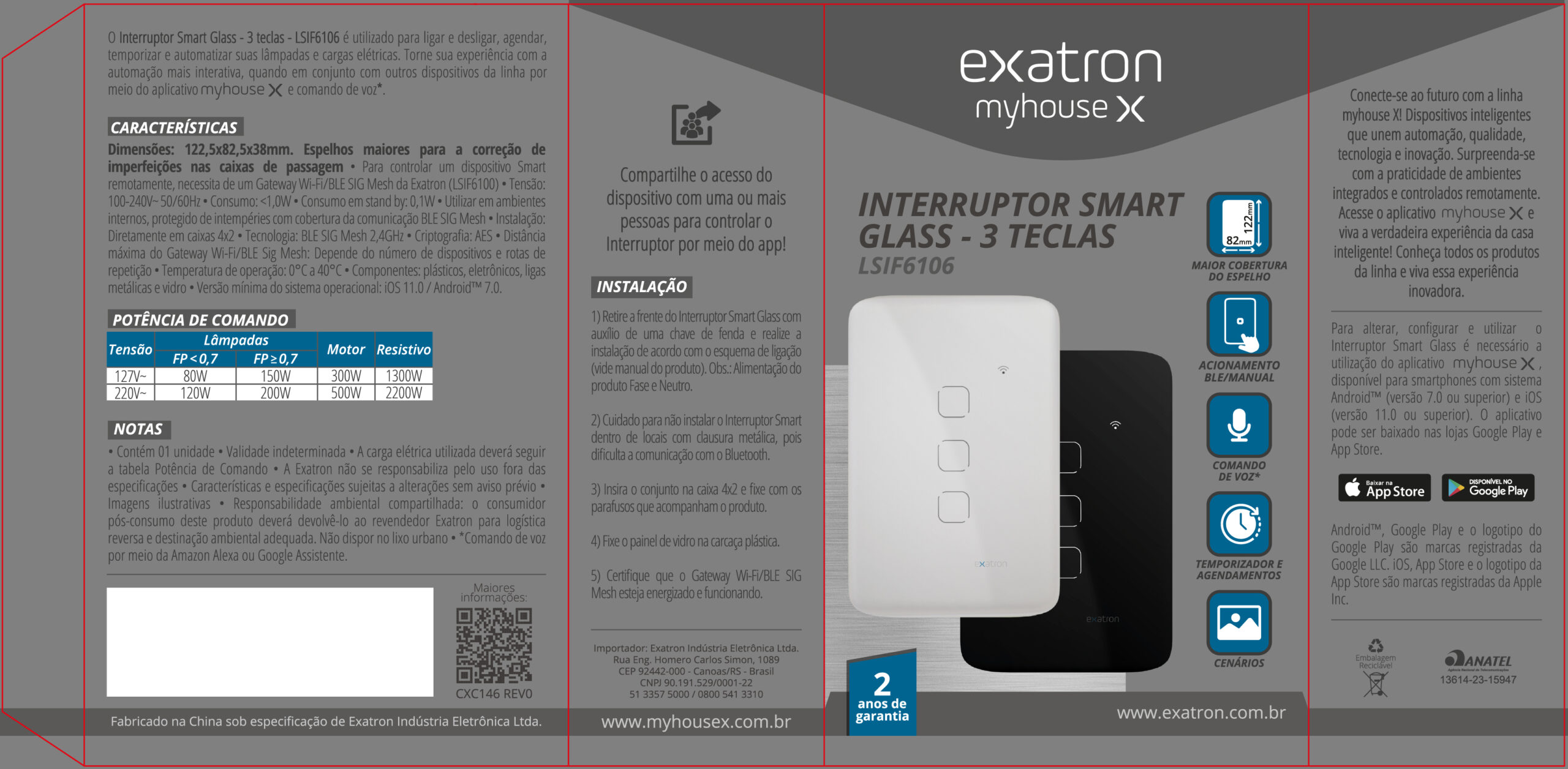

Packaging

User manual

R$ 143,49

Shipped within 7 business days.
Price* for end consumer

Information

Technical Specifications

• Power supply: 100-240V~ 50/60Hz – Phase/Neutral;

• Power consumption: <1.0W;

• Stand by consumption: 0.1W;

• Rated Resistive Current: 10A maximum of the product;

• Dimensions: 122.5×82.5x38mm;

• Technology: BLE SIG Mesh 2.4GHz;

• Encryption: AES;

• Maximum distance from the Wi-Fi/BLE SIG Mesh Gateway: Up to 10m from the Gateway or BLE SIG Mesh device, without obstacles. Network size depends on the number of devices and repeater routes;

• BLE SIG Mesh signal repetition: Yes – repeats the BLE signal between devices that have the same technology and are on the same network;

• Operating temperature: 0°C to 40°C;

• Warranty: 2 years;

• Control Power:

VoltageLight bulbsEngineResistive
FP<0.7FP≥0.7
127V~80W150W300W1300W
220V~120W200W500W2200W

Note: The table above shows the maximum power that the assembly can handle, regardless of the number of switches. The sum of the power consumption should not exceed the values shown in the table. This device should not be used to directly operate motors and electrical equipment that have a starting current greater than the maximum current of the device. For your safety, do not open the product under any circumstances.



Installation

• Configure the Smart Glass Switch using the myhouse X app, available for download on Google Play and the App Store. Minimum operating system version: iOS 11.0 / Android™ 7.0;

• The product must be installed indoors, in a place free from humidity and vibrations, and away from heat sources;

• This product features Bluetooth BLE SIG Mesh communication. To take full advantage of the automation features, you need a Wi-Fi/BLE SIG Mesh Gateway so you can interact with other devices in the myhouse X line. Ensure that the installation location has a Wi-Fi/BLE SIG Mesh Gateway and a standard 2.4GHz Wi-Fi signal with an internet connection;

• Installation should be done directly into 4x2 boxes.
