Smart X-Control Front Presence Sensor
1123272023070764a81fdf39c13

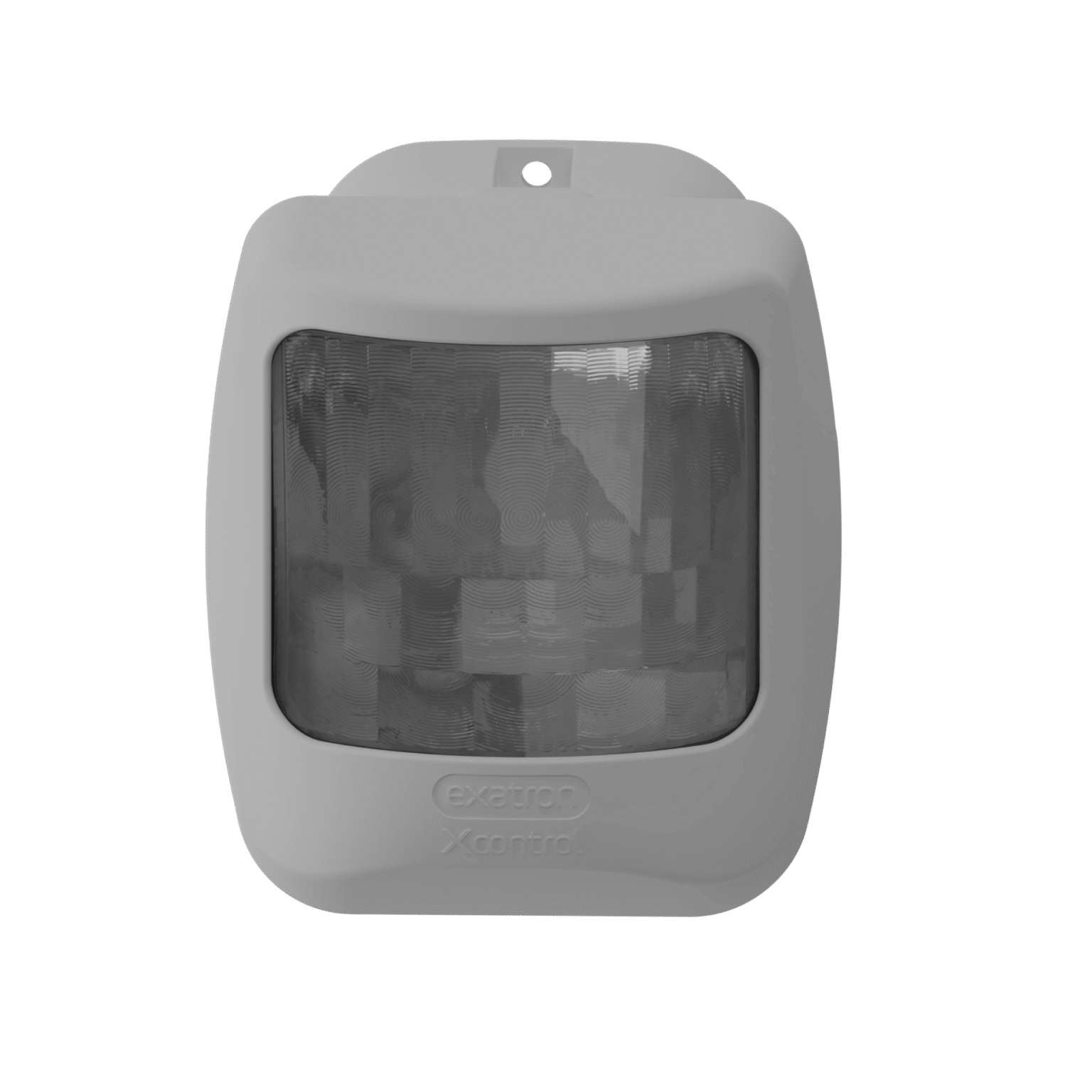

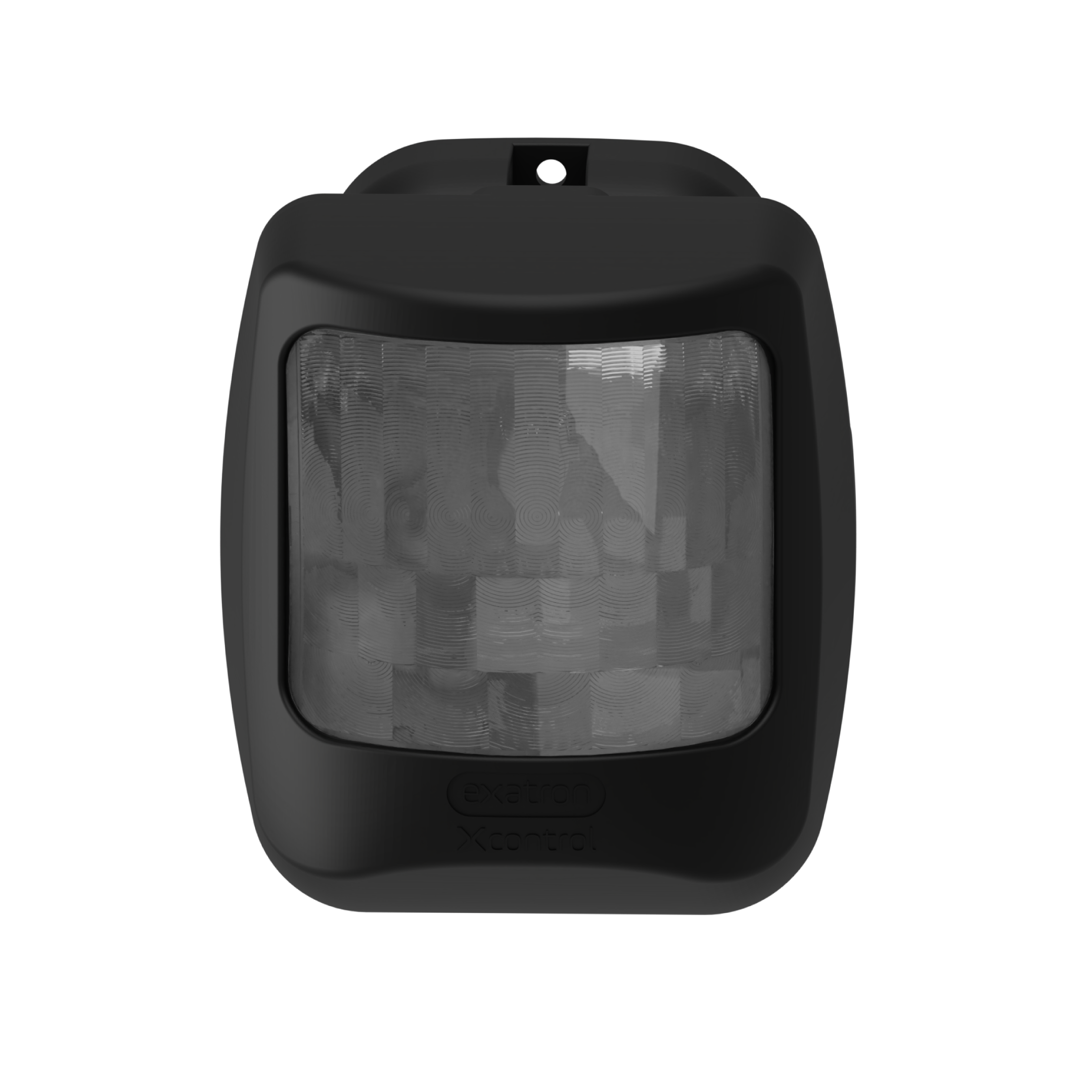

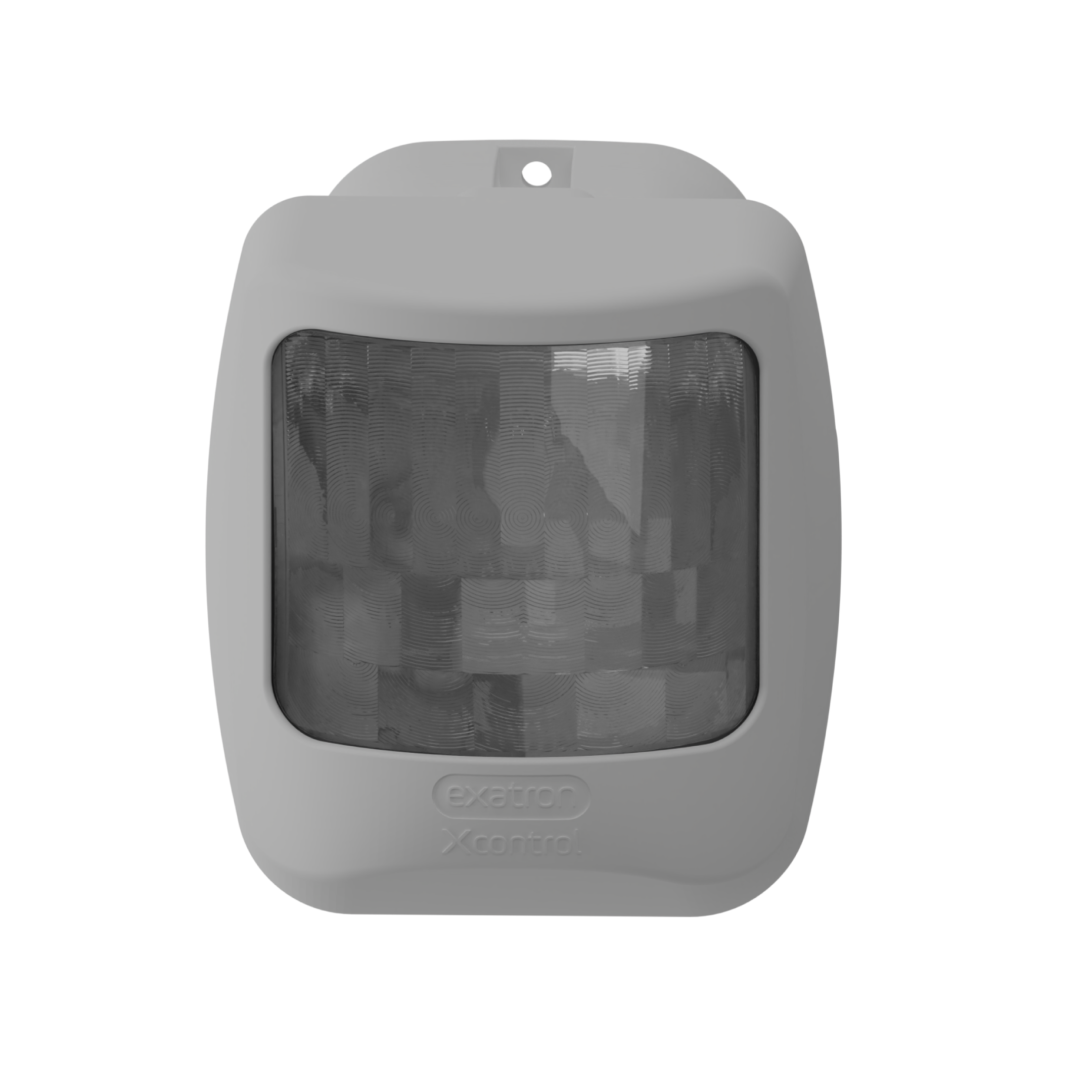

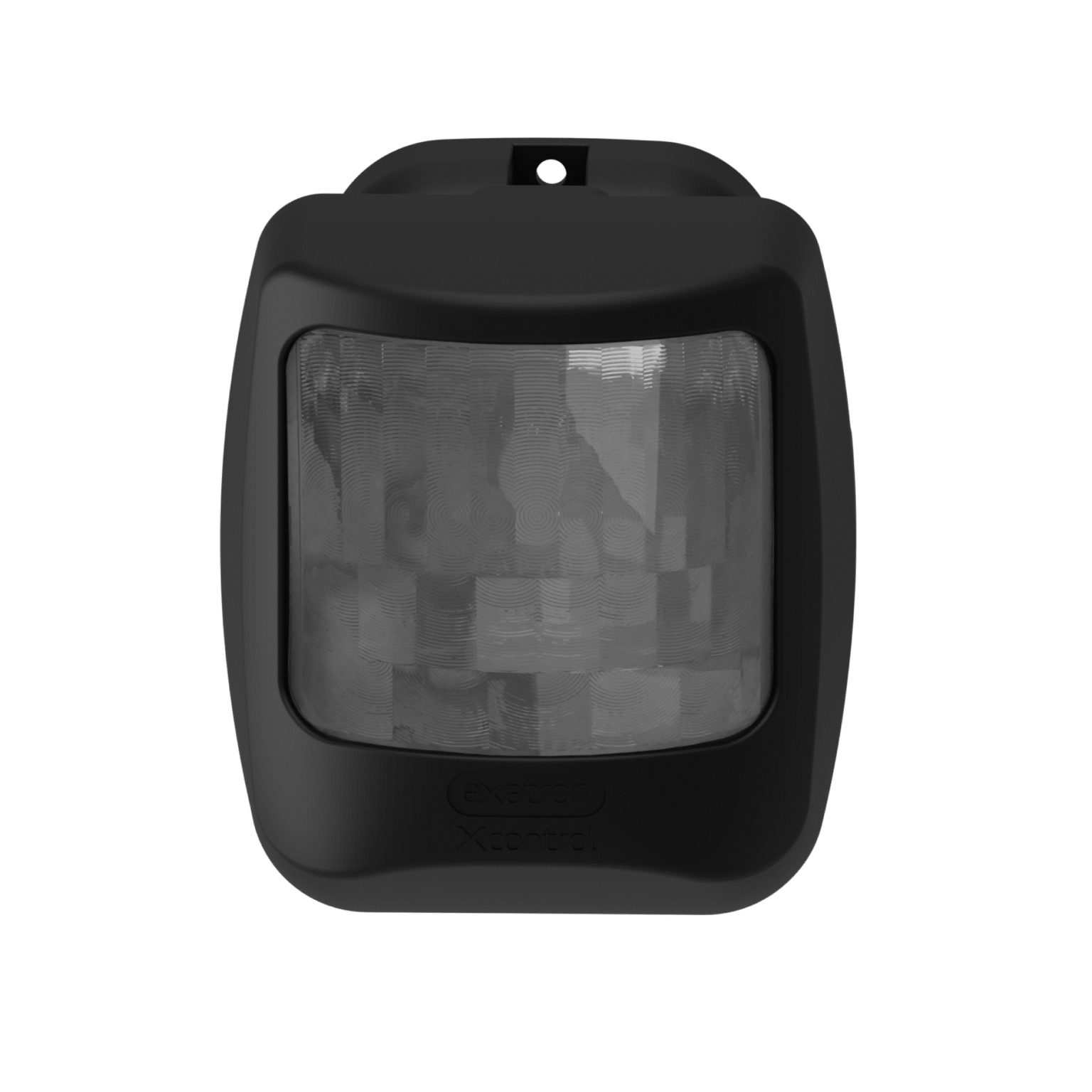

Smart X-Control Front Presence Sensor
1123272023070764a81fdf39c13
Miniatura do vídeo

Information

Technical Specifications

• Power supply voltage: 100 – 240 V~ 50/60Hz;

• Self-consumption: less than 1.0W;

• Coverage: 110° with a reach of up to 15m at an ambient temperature of 25ºC, at a height of 2.1m;

• Time settings: 1 and 30 seconds, 1 to 5 minutes, 10, 15, 20, 25, 30, 40 and 50 minutes, 1, 1:30, 2, 2:30, 3 and 4 hours;

• Light Sensor (LUX-PHOTOCELL): 1 (at night) to 4 (without photocell);

• Sensitivity Adjustment: 1 (sudden movements) to 3 (greater range);

• Lamp Friendly: load activation system with low electrical voltage < 50 V, increasing the lifespan of the assembly (lamps, ballast and sensor);

• It has an LED indicator for operation, detection, and configured parameters;

• Energy savings of up to 75%;

• Composition: plastic components, electronic components and metal alloys;

• For indoor use;

• Warranty: 2 years;

• Includes screw and wall plug for installation;

• Surge protection: 2KV;

• Case material: Plastic components (ABS), electronic components, and metal alloys;

• Color: White or black;

• Protection rating: IP32;

• Control power:

VoltageElectronicsLEDHalogen/Resistive
220V280W280W800W
127V180W180 W400W
THD < 20% PF > 0.90

The maximum drive power should not be added together in parallel installations.

Smart X-Control Front Presence Sensor

unavailable

Code: LESF4000 (XC)

Description

The Smart X-Control Front Presence Sensor – LESF4000 (XC) is an intelligent control device designed to activate timed loads. This equipment detects the movement of heat sources such as people and cars through an infrared sensor, activating the load and switching it off after absence, according to the programmed time.

It is ideal for controlling lighting in hallways, stairwells, garages, entrances, reception areas, warehouses, storage rooms, and other interior spaces in homes, offices, condominiums, industries, hotels, and public buildings.

Smart X-Control (XC): With the exclusive Smart X-Control technology, it is possible to configure the sensor in seconds via smartphone, without the need to open them and be exposed to electricity or having to turn off the circuit breakers.

Download

Packaging

User manual

Information

Technical Specifications

• Power supply voltage: 100 – 240 V~ 50/60Hz;

• Self-consumption: less than 1.0W;

• Coverage: 110° with a reach of up to 15m at an ambient temperature of 25ºC, at a height of 2.1m;

• Time settings: 1 and 30 seconds, 1 to 5 minutes, 10, 15, 20, 25, 30, 40 and 50 minutes, 1, 1:30, 2, 2:30, 3 and 4 hours;

• Light Sensor (LUX-PHOTOCELL): 1 (at night) to 4 (without photocell);

• Sensitivity Adjustment: 1 (sudden movements) to 3 (greater range);

• Lamp Friendly: load activation system with low electrical voltage < 50 V, increasing the lifespan of the assembly (lamps, ballast and sensor);

• It has an LED indicator for operation, detection, and configured parameters;

• Energy savings of up to 75%;

• Composition: plastic components, electronic components and metal alloys;

• For indoor use;

• Warranty: 2 years;

• Includes screw and wall plug for installation;

• Surge protection: 2KV;

• Case material: Plastic components (ABS), electronic components, and metal alloys;

• Color: White or black;

• Protection rating: IP32;

• Control power:

VoltageElectronicsLEDHalogen/Resistive
220V280W280W800W
127V180W180 W400W
THD < 20% PF > 0.90

The maximum drive power should not be added together in parallel installations.
