Smart Ceiling Mount Presence Sensor

Information

Technical Specifications

• Voltage: 100-240V~ 50/60Hz;

• Power consumption: <1W;

• Rated resistive current: 1A;

• Technology: BLE SIG Mesh 2.4GHz;

• Maximum distance from the Wi-Fi/BLE SIG Mesh Gateway: Depends on the number of devices and repeater routes;

• Maximum distance between LSST6000 units for BLE SIG Mesh repetition: Up to 20 meters in an open environment;

• Encryption: AES;

• Operating temperature: 0°C to 40°C;

• Dimensions: 89x30mm;

• Control power:

Voltage:Dimmable lampsEngine*Resistive
Electronics

Halogen/

Incandescent

127V~120W100W120W
220V~200W220W

* Dimmable motors.

Note: The table above shows the maximum power the product can handle; the power consumed should not exceed the values shown in the table. This device should not be used to directly drive motors and electrical equipment that have a starting current greater than the device's maximum current. For your safety, do not open the product under any circumstances.



Installation

• Configure the Smart Ceiling Presence Sensor using the myhouse X app, available for download on Google Play and the App Store. Minimum operating system version: iOS 11.0 / Android™ 7.0;

• Installation in hexagonal electrical boxes or fixed directly to the ceiling;

• For indoor use with BLE SIG Mesh and Wi-Fi coverage, protected from the elements. This product is designed for installation in accordance with the National Electrical Code and local regulations in Brazil (NBR5410).

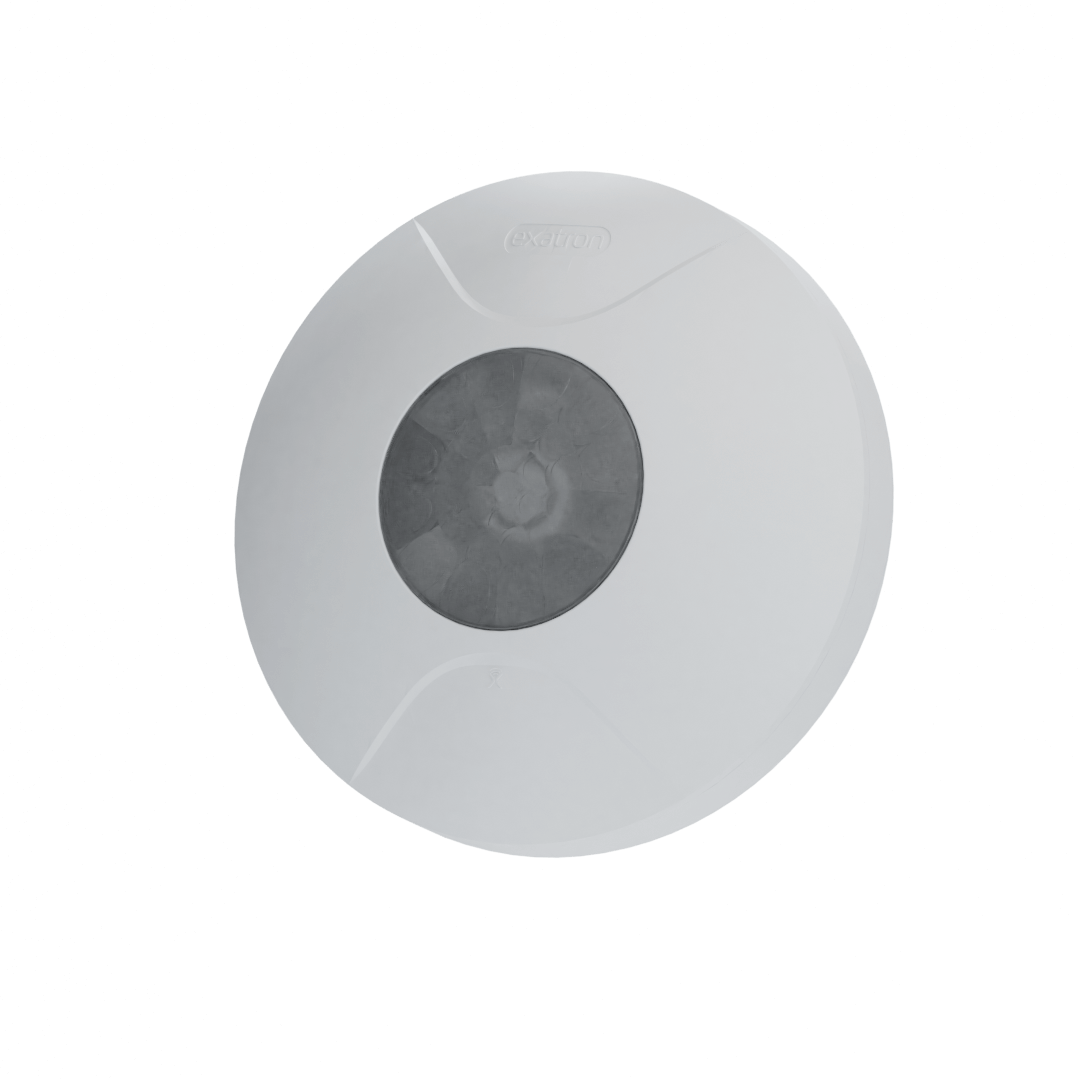

Smart Ceiling Mount Presence Sensor

available

Code: LSST6000

Description

Revolutionize and connect spaces with the myhouse X line from Exatron!

The Smart Ceiling Presence Sensor (LSST6000) is an intelligent control for turning loads on, off, and timing them by detecting the movement of heat sources such as people and cars. It is also possible to dim and schedule them via commands received from a smartphone and/or another device from the Exatron myhouse X line.

It features BLE SIG Mesh technology to avoid overloading your Wi-Fi router, and together with the Smart Wi-Fi/BLE SIG Mesh Gateway Interface, it allows you to have up to 128 devices occupying only one channel of your Wi-Fi network.

Easy to install, it offers a new way to use your equipment, with control in your hands, through the myhouse X app or the Alexa and Google Assistant voice assistants.



"Incorporates a product approved by Anatel under number 07475-21-11765."

"This equipment is not entitled to protection against harmful interference and may not cause interference to duly authorized systems."

"For more information, please visit the Anatel website: www.gov.br/anatel/pt-br/"

Download

Packaging

User manual

R$ 80,17

Shipped within 7 business days.
Price* for end consumer

Information

Technical Specifications

• Voltage: 100-240V~ 50/60Hz;

• Power consumption: <1W;

• Rated resistive current: 1A;

• Technology: BLE SIG Mesh 2.4GHz;

• Maximum distance from the Wi-Fi/BLE SIG Mesh Gateway: Depends on the number of devices and repeater routes;

• Maximum distance between LSST6000 units for BLE SIG Mesh repetition: Up to 20 meters in an open environment;

• Encryption: AES;

• Operating temperature: 0°C to 40°C;

• Dimensions: 89x30mm;

• Control power:

Voltage:Dimmable lampsEngine*Resistive
Electronics

Halogen/

Incandescent

127V~120W100W120W
220V~200W220W

* Dimmable motors.

Note: The table above shows the maximum power the product can handle; the power consumed should not exceed the values shown in the table. This device should not be used to directly drive motors and electrical equipment that have a starting current greater than the device's maximum current. For your safety, do not open the product under any circumstances.



Installation

• Configure the Smart Ceiling Presence Sensor using the myhouse X app, available for download on Google Play and the App Store. Minimum operating system version: iOS 11.0 / Android™ 7.0;

• Installation in hexagonal electrical boxes or fixed directly to the ceiling;

• For indoor use with BLE SIG Mesh and Wi-Fi coverage, protected from the elements. This product is designed for installation in accordance with the National Electrical Code and local regulations in Brazil (NBR5410).
