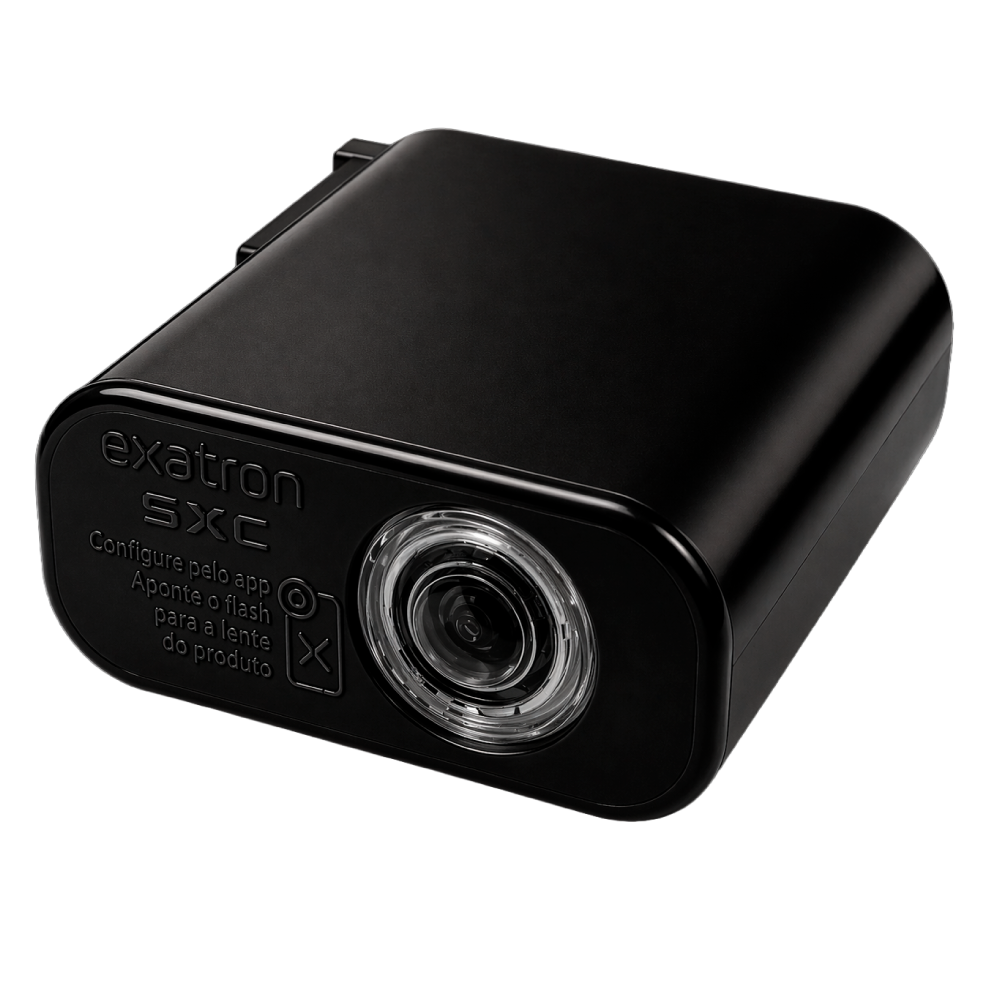

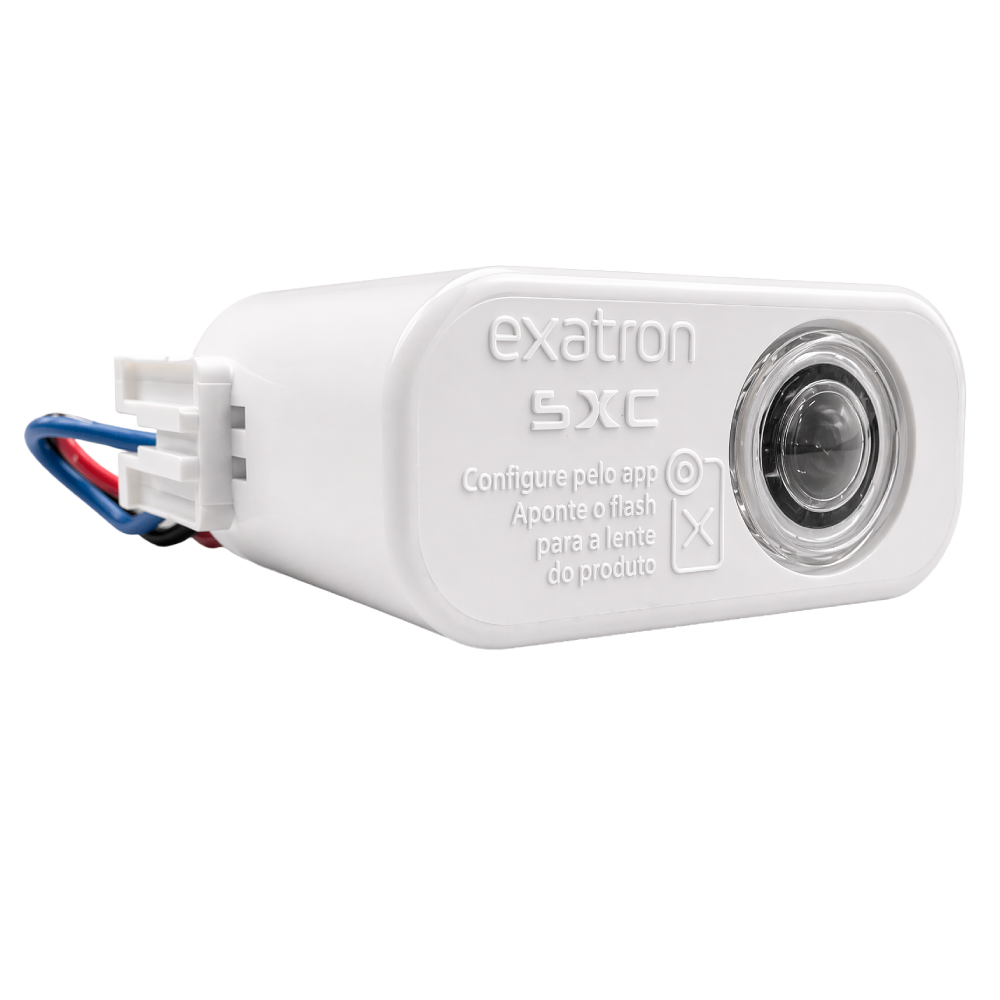

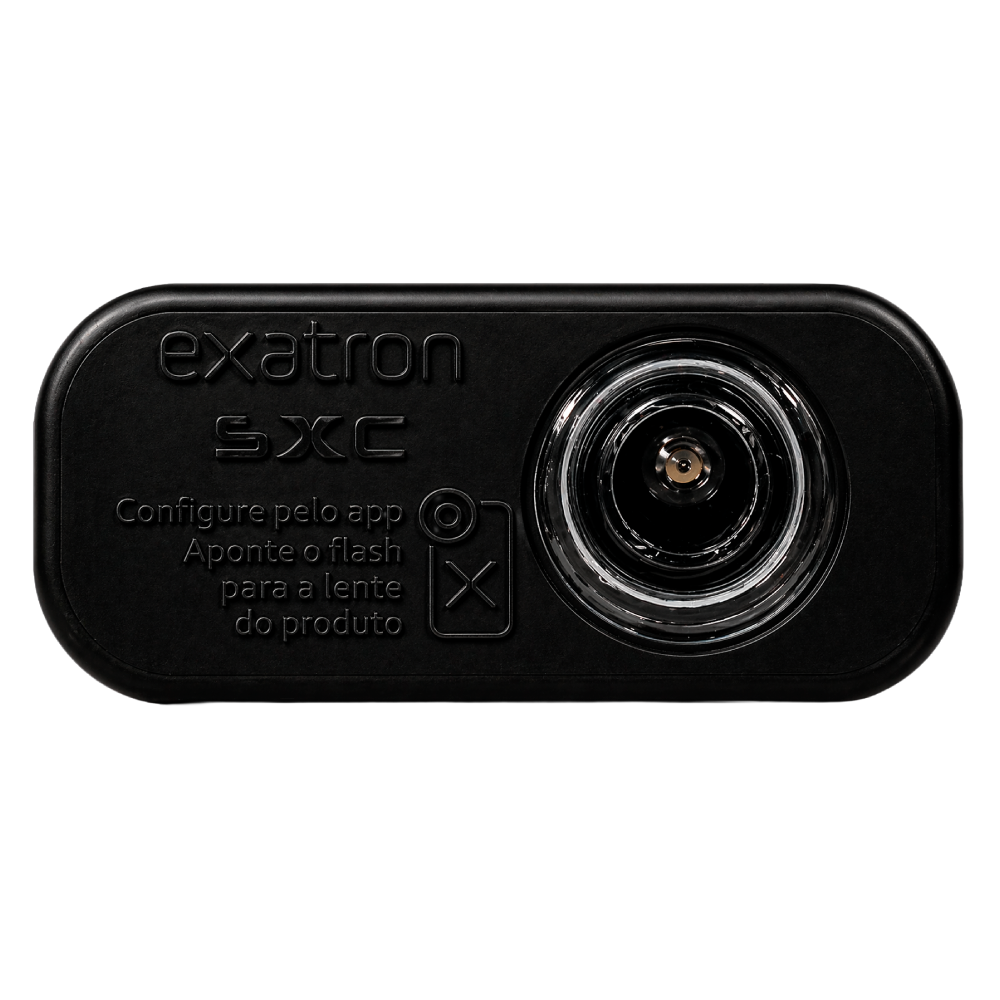

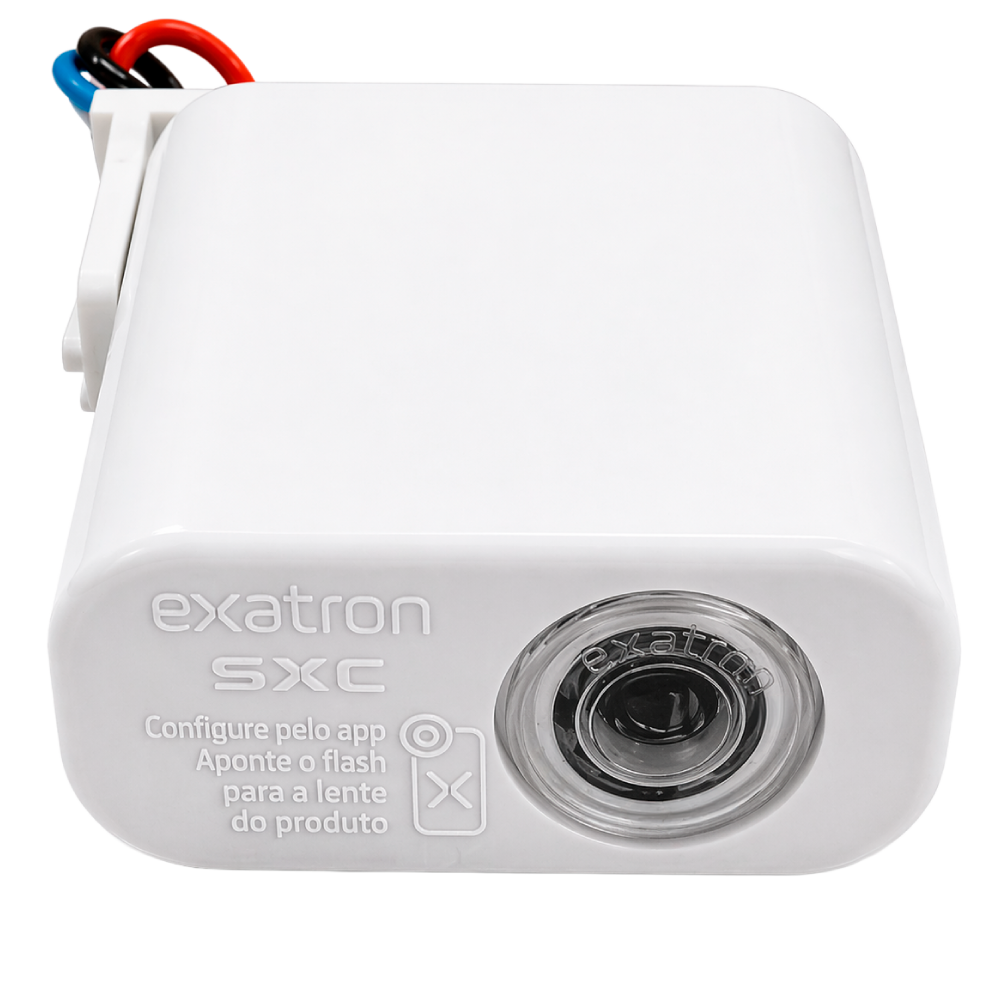

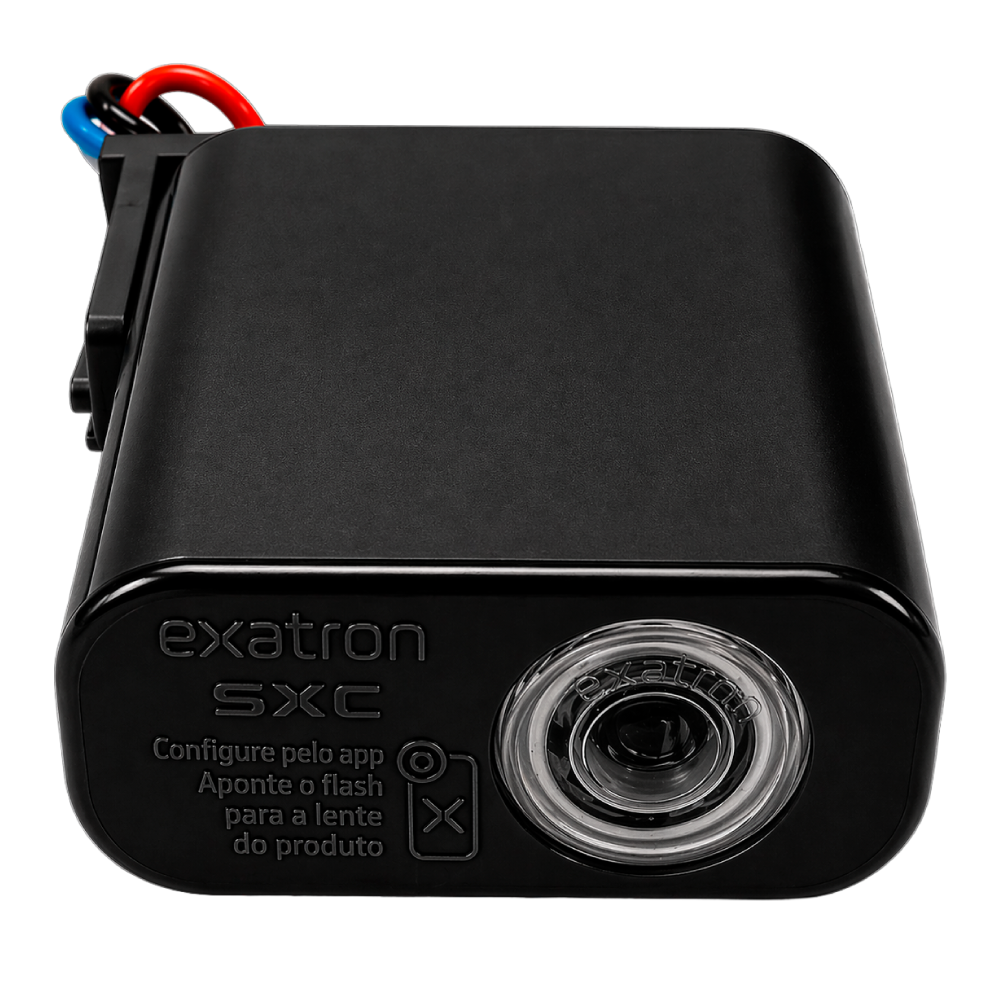

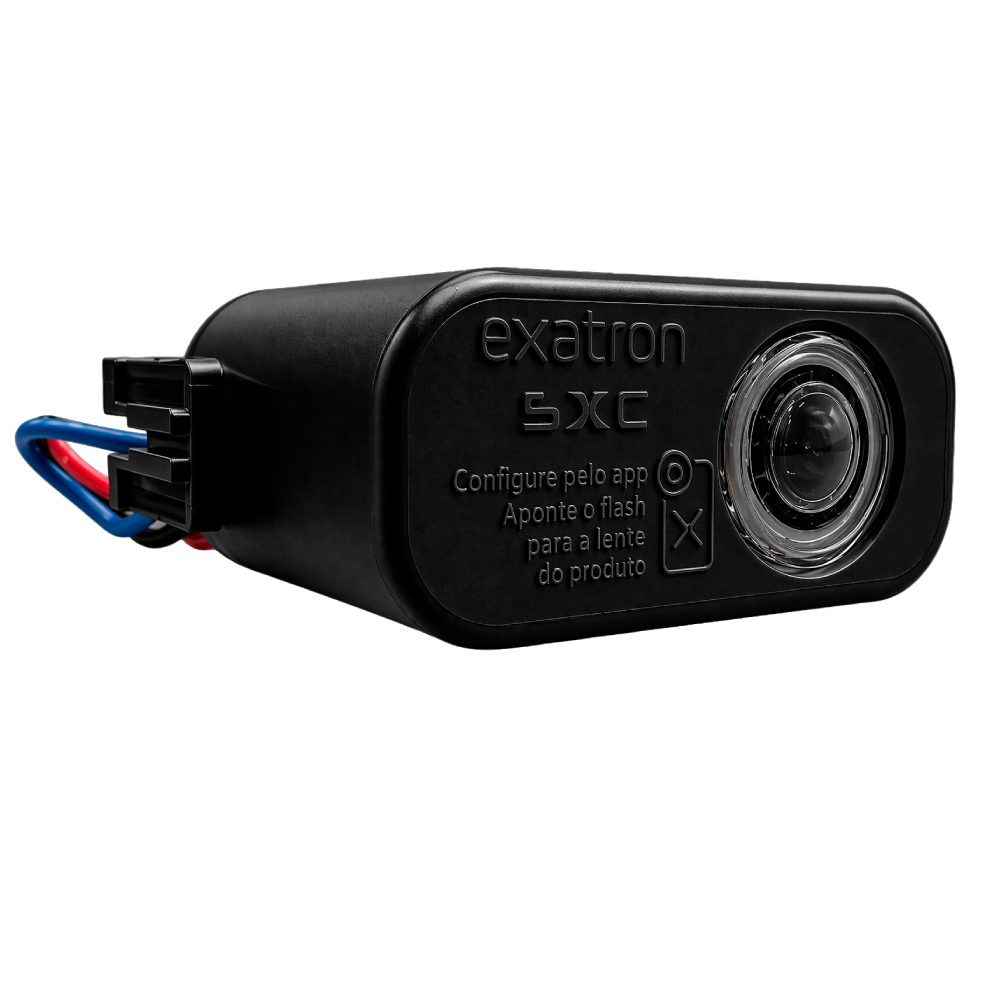

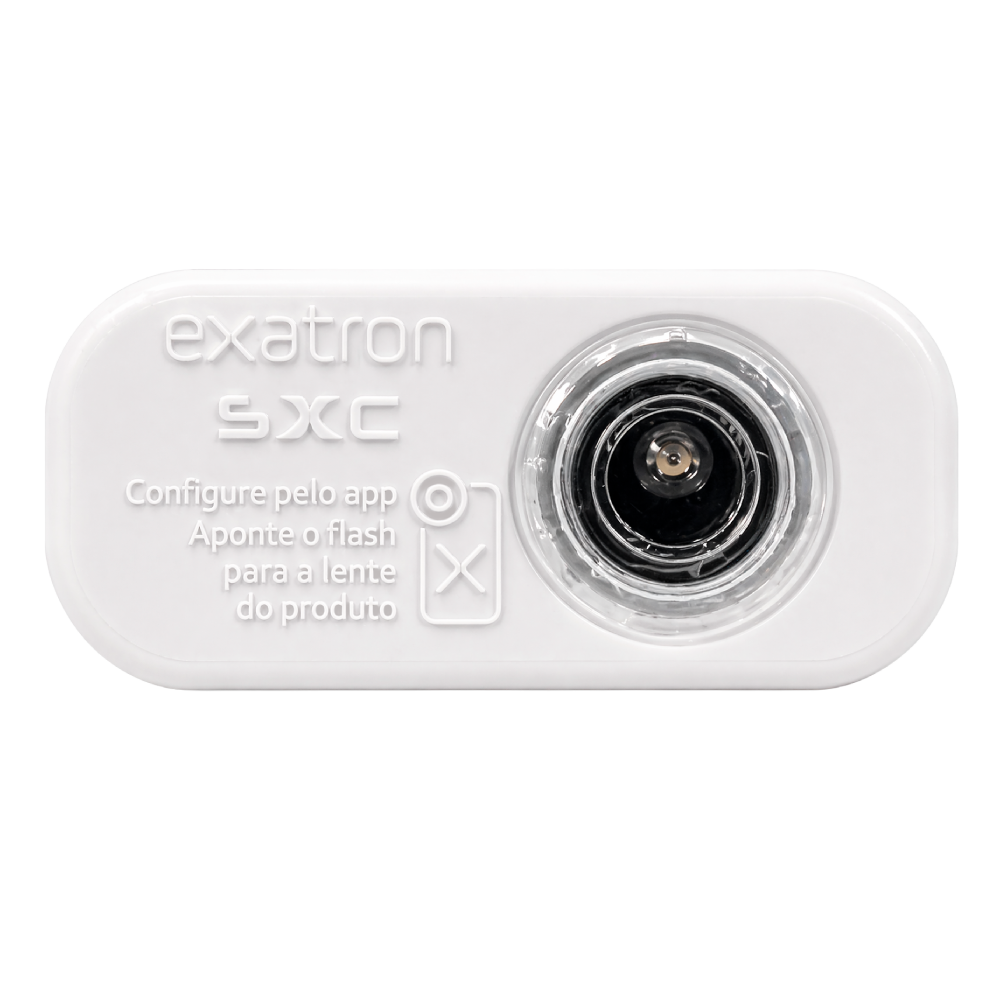

Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay
Smart X-Control 2.0 Compact Relay

Information

Technical Specifications:

  • Voltage: 100-240V~;
  • Operating frequency: 50/60Hz;
  • Power consumption: <0.4W;
  • Technology: Microcontroller-based and comes pre-configured from the factory. Its settings can be changed via the Smart X-Control app;
  • Initial state of the contacts: Normally open (NO);
  • Material: Polypropylene (PP) resin and electronic components;
  • Timer function: Automatic, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 hours;
  • Automatic function (AUTO): turns the light on when it gets dark and turns it off automatically when there is natural light;
  • Photocell adjustment: at night, at dusk and at dusk;
  • Random function: turns the light on and off randomly in the absence of natural light, varying between 10 minutes and 3 hours and 40 minutes.
  • Reset function: Returns the product settings to factory defaults;
  • Lamp-friendly: load activation system with low electrical voltage <50V, increasing the lifespan of the assembly (load and relay);
  • Protection rating: IP67;
  • Warranty: 2 years;
  • Dimensions: 54×50.8x26mm;
  • Time filter: double delay that prevents unintended activations due to sudden changes in brightness such as lightning, lasers, clouds, etc. Between 2 and 5 seconds to turn on or off;
  • Operating temperature: -5°C to +50°C;

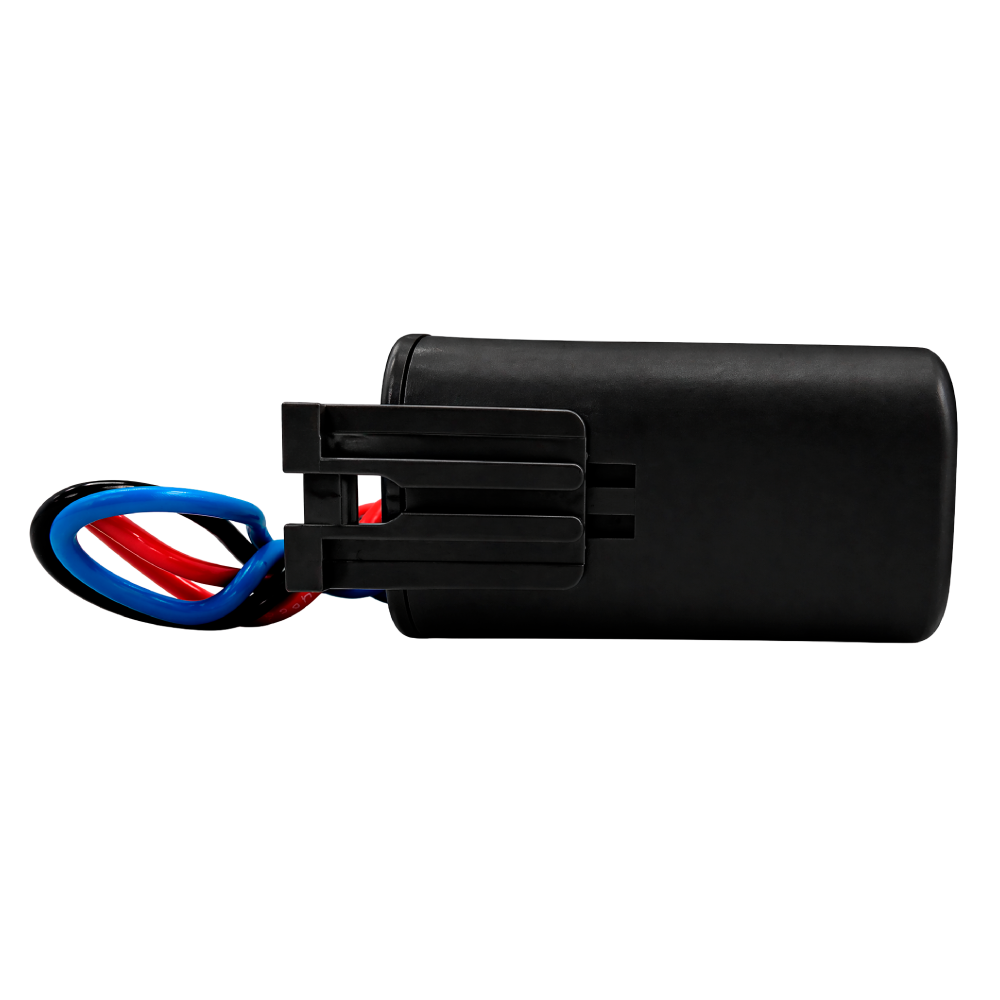

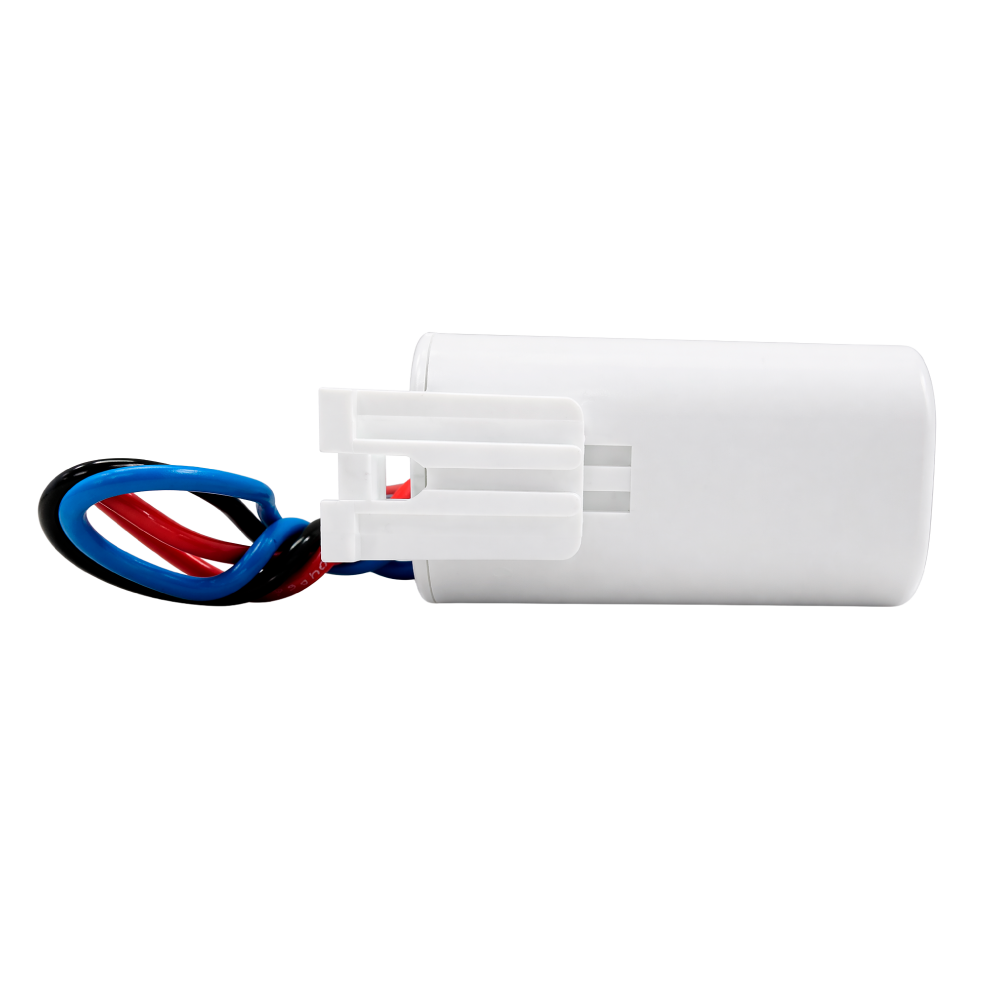

  • It has a removable mounting bracket;
  • Control power:
Voltage Electronics/LED Halogen
220V 300W 1000W
127V 200W 1000W
THD<20% and FP>0.90

Installation:

There is no need to open the relay or use tools to perform the programming.

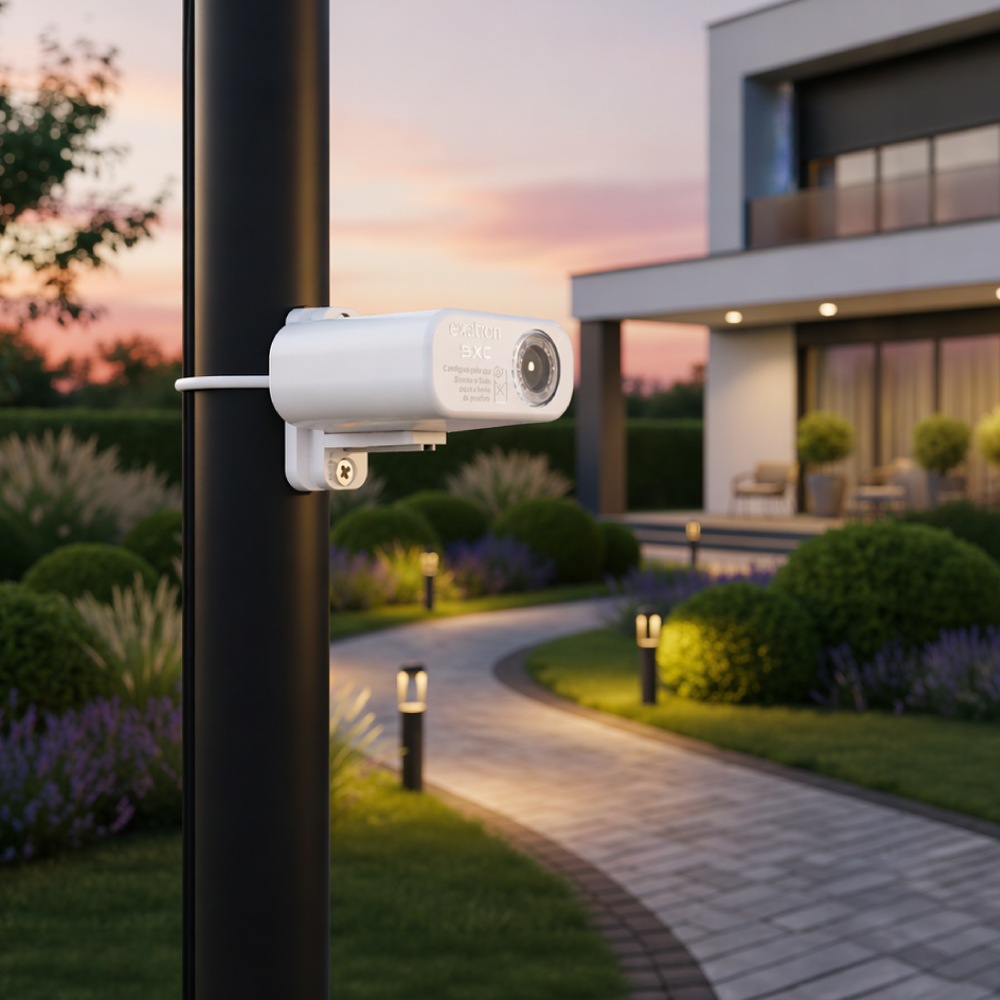

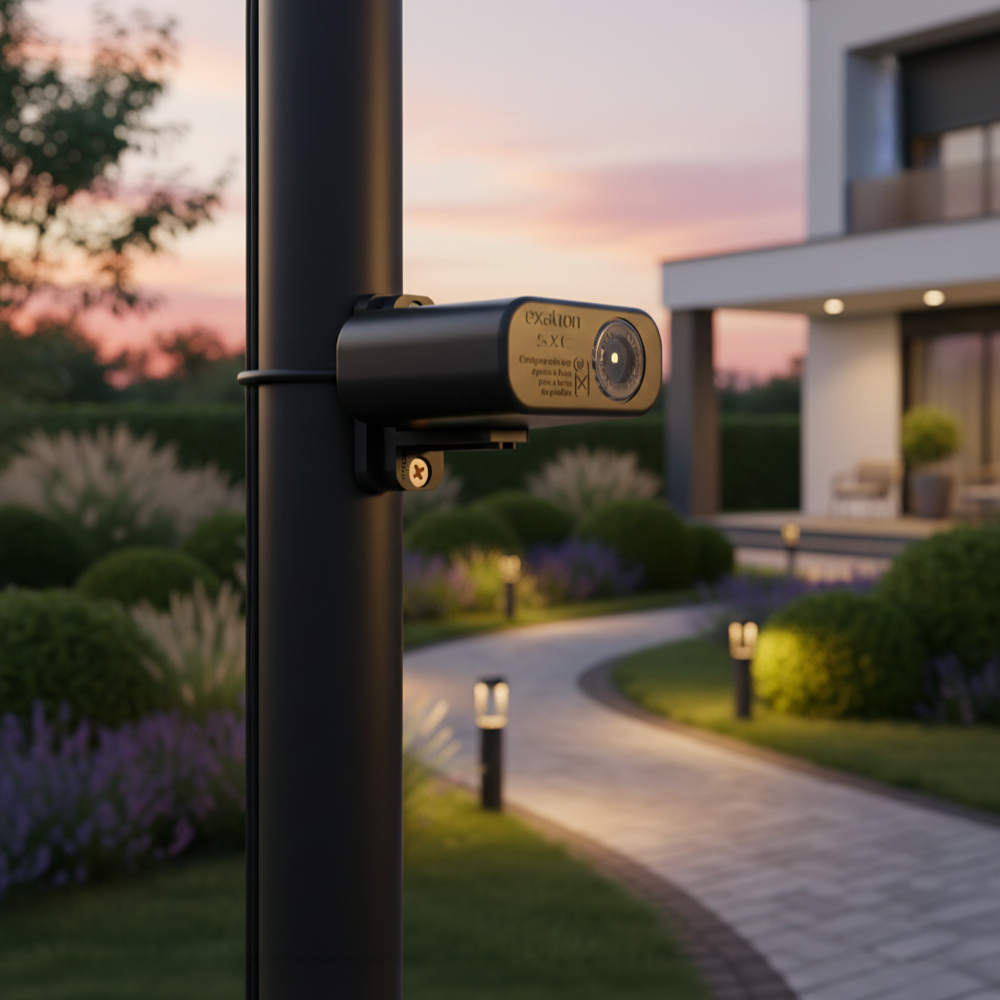

Install the relay so that the sensor is exposed to natural daylight and is not affected by other nearby lamps.

Smart X-Control 2.0 Compact Relay

available

Code: LERL4001XC2

Description

Take your lighting automation to the next level with the Smart X-Control Compact Relay. Equipped with exclusive technology. Smart X-ControlThis compact relay allows you to customize its operation directly from your smartphone.

Download the Smart X-Control app (available for iOS and Android) and precisely configure the activation times and sensitivity. It's the perfect solution for residential, commercial, and condominium projects that demand technology, versatility, and efficiency.

Download

Packaging

User manual

R$ 33,27

Shipped within 7 business days.
Price* for end consumer

Information

Technical Specifications:

  • Voltage: 100-240V~;
  • Operating frequency: 50/60Hz;
  • Power consumption: <0.4W;
  • Technology: Microcontroller-based and comes pre-configured from the factory. Its settings can be changed via the Smart X-Control app;
  • Initial state of the contacts: Normally open (NO);
  • Material: Polypropylene (PP) resin and electronic components;
  • Timer function: Automatic, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12 hours;
  • Automatic function (AUTO): turns the light on when it gets dark and turns it off automatically when there is natural light;
  • Photocell adjustment: at night, at dusk and at dusk;
  • Random function: turns the light on and off randomly in the absence of natural light, varying between 10 minutes and 3 hours and 40 minutes.
  • Reset function: Returns the product settings to factory defaults;
  • Lamp-friendly: load activation system with low electrical voltage <50V, increasing the lifespan of the assembly (load and relay);
  • Protection rating: IP67;
  • Warranty: 2 years;
  • Dimensions: 54×50.8x26mm;
  • Time filter: double delay that prevents unintended activations due to sudden changes in brightness such as lightning, lasers, clouds, etc. Between 2 and 5 seconds to turn on or off;
  • Operating temperature: -5°C to +50°C;
  • It has a removable mounting bracket;
  • Control power:
Voltage Electronics/LED Halogen
220V 300W 1000W
127V 200W 1000W
THD<20% and FP>0.90

Installation:

There is no need to open the relay or use tools to perform the programming.

Install the relay so that the sensor is exposed to natural daylight and is not affected by other nearby lamps.

Default Kit
