Technical Specifications

• Power supply voltage: 100-240V ~50/60Hz.

• Power consumption: <1W

• Motion sensor:

Installation requirements: 2.4m from the ground.

– Sensor coverage diameter: 7 meters, for movements perpendicular to the sensor.

– When the displacement is made towards the sensor, its sensitivity will be reduced, and the diameter will be approximately 4 meters.

The sensor works by detecting the movement of heat sources, therefore there must be a difference of at least 3°C between the moving object and the environment.

The distances provided refer to an environment with a temperature of 25°C.

– Coverage angle: 328° (2×164°).

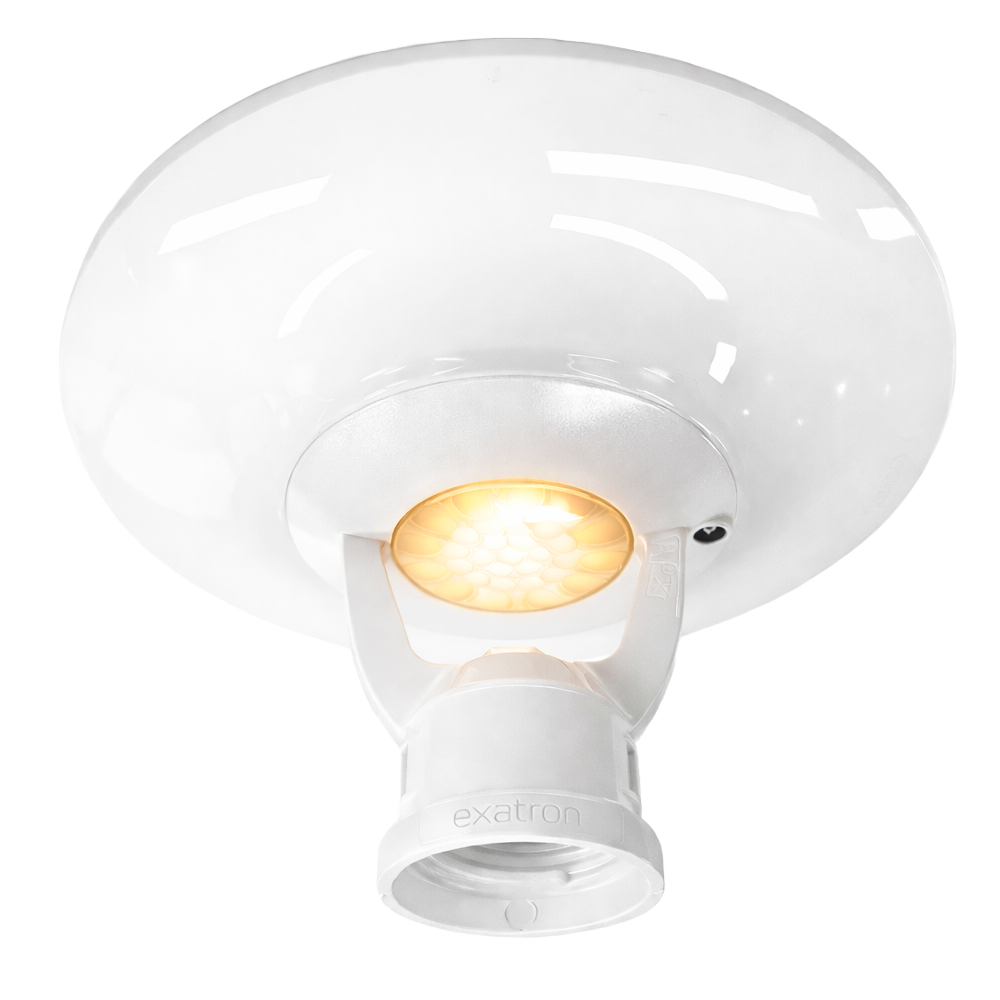

• Features an LED indicator: the LED flashes for 0.5 seconds after each detection.

• Detects the movement of heat sources (people, cars, etc.) that must be at least 3°C different from the ambient temperature where the sensor is installed.

• Operating temperature: -5°C to 40°C.

• The maximum drive power should not be added together in parallel installations.

• Load chart:

• Suitable for indoor and outdoor use.

• Time adjustment:

– Seconds: 1, 2, 3, 4, 5, 10, 15, 30, 45

– Minutes: 1, 2, 3, 4, 5, 10, 15, 20, 25, 30, 40, 50

– Hours: 1, 1:30, 2, 2:30, 3, 3:30, 4

• Photocell, allows the load to be turned on only in the dark:

Disabled.

– Enabled (30 adjustment levels).

– Auto-Lux (real-time level adjustment; the user sends a command to the product when the ambient lighting reaches the desired level for the load to turn on; the sensor will adopt this brightness level to activate the load).

• LED control: Allows you to enable or disable the product's LED.

– When disabled, the product's LED will not blink when it detects movement.

– When enabled, the product's LED will flash when it detects movement.

ATTENTION: For use in outdoor environments, it must be protected from the elements (rain and sunlight) and it is recommended to set the sensitivity to a low level (1) to avoid triggering by air currents.

Friend of the Lamp: Load drive system with low voltage <50V, increasing the lifespan of the assembly (lamps, ballast and sensor), exclusive to Exatron.

• Guarantee: 2 years.

Installation

To change the photocontrol relay programming, use the Smart X-Control app. You can find it through your preferred app store, Google Play or the App Store, by searching for “Exatron Smart X-Control”.
